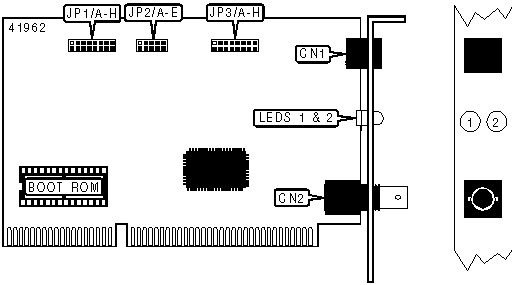

EDIMAX COMPUTER COMPANY
EN-2000PXA (VER. 2)
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-45 connector |
CN1 |
BNC connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Factory configured - do not alter. |
JP1/8 |
Unidentified |
|
BASE I/O ADDRESS SELECT | ||||
|
Address |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
|
200h |
Open |
Closed |
Open |
Open |
|
220h |
Open |
Closed |
Open |
Closed |
|
240h |
Open |
Closed |
Closed |
Open |
|
260h |
Open |
Closed |
Closed |
Closed |
|
280h |
Closed |
Closed |
Open |
Open |
|
2A0h |
Closed |
Closed |
Open |
Closed |
|
2C0h |
Closed |
Closed |
Closed |
Open |
|
2E0h |
Closed |
Closed |
Closed |
Closed |
|
300h |
Open |
Open |
Open |
Open |
|
320h |
Open |
Open |
Open |
Closed |
|
340h |
Open |
Open |
Closed |
Open |
|
360h |
Open |
Open |
Closed |
Closed |
|
380h |
Closed |
Open |
Open |
Open |
|
3A0h |
Closed |
Open |
Open |
Closed |
|
3C0h |
Closed |
Open |
Closed |
Open |
|
3E0h |
Closed |
Open |
Closed |
Closed |
|
IRQ SELECT | |||
|
IRQ |
JP1/E |
JP1/F |
JP1/G |
|
2/9 |
Open |
Open |
Open |
|
3 |
Open |
Open |
Closed |
|
4 |
Open |
Closed |
Open |
|
5 |
Open |
Closed |
Closed |
|
10 |
Closed |
Open |
Open |
|
11 |
Closed |
Open |
Closed |
|
12 |
Closed |
Closed |
Open |
|
15 |
Closed |
Closed |
Closed |
|
BOOT ROM ADDRESS SELECT | ||||||
|
Address |
Size |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
|
C0000h |
16K |
Closed |
Open |
Open |
Open |
Open |
|
C4000h |
16K |
Closed |
Open |
Open |
Open |
Closed |
|
C8000h |
16K |
Closed |
Open |
Open |
Closed |
Open |
|
CC000h |
16K |
Closed |
Open |
Open |
Closed |
Closed |
|
D0000h |
16K |
Closed |
Open |
Closed |
Open |
Open |
|
D4000h |
16K |
Closed |
Open |
Closed |
Open |
Closed |
|
D8000h |
16K |
Closed |
Open |
Closed |
Closed |
Open |
|
DC000h |
16K |
Closed |
Open |
Closed |
Closed |
Closed |
|
C0000h |
32K |
Open |
Closed |
Open |
Open |
Open |
|
C8000h |
32K |
Open |
Closed |
Open |
Open |
Closed |
|
D0000h |
32K |
Open |
Closed |
Open |
Closed |
Open |
|
D8000h |
32K |
Open |
Closed |
Open |
Closed |
Closed |
|
C0000h |
64K |
Open |
Closed |
Closed |
Open |
Open |
|
D0000h |
64K |
Open |
Closed |
Closed |
Open |
Closed |
|
Boot ROM disabled |
None |
Open |
Open |
Open |
Open |
Open |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
UTP link is good |
|
LED1 |
Green |
Off |
UTP link is broken |
|
LED2 |
Red |
On |
Power enabled |
|
LED2 |
Red |
Blinking |
Network activity present |
|
LED2 |
Red |
Off |
Power/network activity disabled |
