EDIMAX COMPUTER COMPANY
EN5100 PCI BUS ETHERNET ADAPTER
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Unidentified |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|

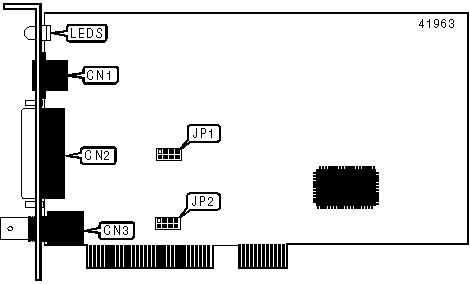

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
UTP connector |
CN1 |
RG-58A/U connector |
CN3 |
|
AUI connector |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
JP1/4 | |
| » |
AUI connector enabled |
Closed |
Open |
Open |
Open |
|
BNC connector enabled |
Open |
Open |
Open |
Closed | |
|
Note: Jumper settings not required when using RJ-45 connnector | |||||
|
PCI INTERRUPT SELECTION | |||||
|
Setting |
JP2/1 |
JP2/2 |
JP2/3 |
JP2/4 | |
| » |
INTA |
Closed |
Open |
Open |
Open |
|
INTB |
Open |
Closed |
Open |
Open | |
|
INTC |
Open |
Open |
Closed |
Open | |
|
INTD |
Open |
Open |
Open |
Closed | |
|
DIAGNOSTIC LED(S) |
|
Note: Function of LEDs is unidentified. |
