Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star, linear bus
Wiring Type	RJ-45 Unshielded twisted pair RG-58 A/U 50ohm coaxial AUI transceiver via DB-15 port
Data Bus	External

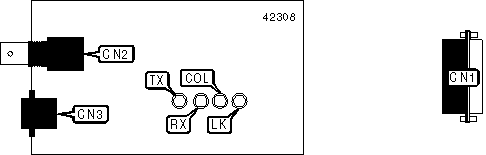

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	RJ-45 UTP connector	CN3
RG-58 A/U 50ohm coaxial	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	Off	Data is not being received
COL	Unidentified	Blinking	Collision detected on network
COL	Unidentified	Off	No collision detected on network
LK	Unidentified	Blinking	UTP link is good
LK	Unidentified	Off	UTP link is broken
