Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star, linear bus
Wiring Type	Fiber optic cable (ST) AUI transceiver via DB-15 port
Data Bus	External

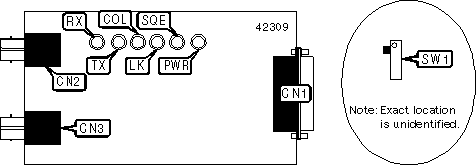

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	Fiber optic connector (ST) - receive	CN3
Fiber optic connector (ST) - transmit	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function disabled	SW1	Off
	SQE test function enabled	SW1	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	Off	Data is not being received
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
COL	Unidentified	Blinking	Collision detected on network
COL	Unidentified	Off	No collision detected on network
LK	Unidentified	Blinking	UTP link is good
LK	Unidentified	Off	UTP link is broken
SQE	Unidentified	On	SQE function is enabled
SQE	Unidentified	Off	SQE function is disabled
PWR	Unidentified	On	Power is on
PWR	Unidentified	Off	Power is off
