Card Type	Network Interface Card
NIC Type	ATM
Maximum Onboard Memory	Unidentified
Network Transfer Rate	Unidentified
Topology	Star
Wiring Type	Fiber optic
Data Bus	32-bit EISA

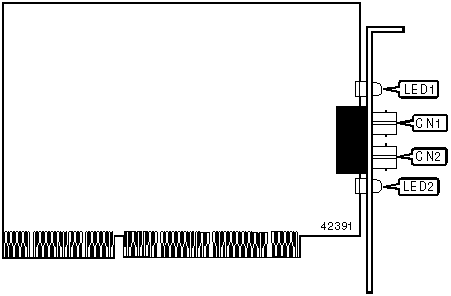

CONNECTIONS
Function	Label	Function	Label
Fiber optic ST connector for receive line	CN1	Fiber optic ST connector for transmit line	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being transmitted
LED1	Off	On	Data is not being received
LED1	Yellow	On	SONET alarm condition declared
LED2	Green	On	Data is being received
LED2	Off	On	Data is not being received
LED2	Red	On	No carrier
