Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Available

Network Transfer Rate

10Mbps

Topology

Linear Bus

Wiring Type

AUI, RG-58A/U 50ohm coaxial

Data Bus

8-bit ISA

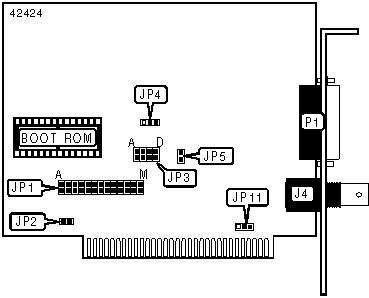

CONNECTIONS

Function

Label

Function

Label

BNC connector

J4

AUI connector

P1

External LED connector

JP2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Boot ROM disabled

JP5

Open

Boot ROM enabled

JP5

Closed

BASE I/O ADDRESS SELECTION

Setting

JP1/A

JP1/B

JP1/C

»

300h

Closed

Closed

Closed

320h

Closed

Closed

Open

340h

Closed

Open

Closed

360h

Closed

Open

Open

INTERRUPT SELECTION

IRQ

JP1/D

JP1/E

JP1/F

JP1/G

JP1/H

JP1/I

2

Closed

Open

Open

Open

Open

Open

»

3

Open

Closed

Open

Open

Open

Open

4

Open

Open

Closed

Open

Open

Open

5

Open

Open

Open

Closed

Open

Open

6

Open

Open

Open

Open

Closed

Open

7

Open

Open

Open

Open

Open

Closed

DMA CHANNEL SELECTION

Channel

JP1/J

JP1/K

JP1/L

JP1/M

1

Closed

Open

Closed

Open

3

Open

Closed

Open

Closed

CABLE TYPE SELECTION

Type

JP4

JP11

AUI

Pins 2 & 3 closed

Pins 1 & 2 closed

BNC

Pins 1 & 2 closed

Pins 2 & 3 closed

ROM ADDRESS SELECTION

Address

JP3/A

JP3/B

JP3/C

JP3/D

C000h

Closed

Closed

Closed

Closed

C400h

Open

Closed

Closed

Closed

»

C800h

Closed

Open

Closed

Closed

CC00h

Open

Open

Closed

Closed

D000h

Closed

Closed

Open

Closed

D400h

Open

Closed

Open

Closed

D800h

Closed

Open

Open

Closed

DC00h

Open

Open

Open

Closed
