INTEL CORPORATION

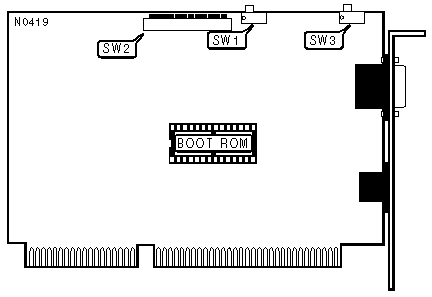

TOKEN EXPRESS ISA 16/4 LAN
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
8/16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Unshielded twisted pair (RJ-45 port) Shielded twisted pair (DB-9 port) |
|
Boot ROM |
Available |
|
NETWORK SEGMENT SPEED | ||
|
Setting |
SW1 | |
| » |
4Mbps |
Off |
|
16Mbps |
On | |
|
Note:All cards on the network segment must have this option set the same. | ||
|
BOOT ROM | ||
|
Setting |
SW2/1 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
I/O BASE ADDRESS | |||
|
Address |
SW2/9 |
SW2/10 | |
| » |
A20-A23h , A30-A3Fh |
On |
On |
|
A24-A27h , A40-A4Fh |
Off |
On | |
|
A50-A53h , A60-A6Fh |
On |
Off | |
|
A54-A57h , A70-A7Fh |
Off |
Off | |
|
DMA CHANNEL | |||
|
Channel |
SW2/11 |
SW2/12 | |
| » |
DMA5 |
Off |
Off |
|
DMA6 |
Off |
On | |
|
DMA7 |
On |
Off | |
|
Programmed I/O |
On |
On | |
|
Note:If the card is installed into an 8-bit slot, programmed I/O is selected regardless of the switch settings. | |||
|
BOOT ROM ADDRESS | |||||
|
Address |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
|
C0000 - C1FFFh |
Off |
Off |
Off |
Off |
Off |
|
C2000 - C3FFFh |
Off |
Off |
Off |
Off |
On |
|
C4000 - C5FFFh |
Off |
Off |
Off |
On |
Off |
|
C6000 - C7FFFh |
Off |
Off |
Off |
On |
On |
|
C8000 - C9FFFh |
Off |
Off |
On |
Off |
Off |
|
CA000 - CBFFFh |
Off |
Off |
On |
Off |
On |
|
CC000 - CDFFFh |
Off |
Off |
On |
On |
Off |
|
CE000 - CFFFFh |
Off |
Off |
On |
On |
On |
|
D0000 - D1FFFh |
Off |
On |
Off |
Off |
Off |
|
D2000 - D3FFFh |
Off |
On |
Off |
Off |
On |
|
D4000 - D5FFFh |
Off |
On |
Off |
On |
Off |
|
D6000 - D7FFFh |
Off |
On |
Off |
On |
On |
|
D8000 - D9FFFh |
Off |
On |
On |
Off |
Off |
|
DA000 - DBFFFh |
Off |
On |
On |
Off |
On |
|
DC000 - DDFFFh |
Off |
On |
On |
On |
Off |
|
DE000 - DFFFFh |
Off |
On |
On |
On |
On |
|
E0000 - E1FFFh |
On |
Off |
Off |
Off |
Off |
|
E2000 - E3FFFh |
On |
Off |
Off |
Off |
On |
|
E4000 - E5FFFh |
On |
Off |
Off |
On |
Off |
|
E6000 - E7FFFh |
On |
Off |
Off |
On |
On |
|
E8000 - E9FFFh |
On |
Off |
On |
Off |
Off |
|
EA000 - EBFFFh |
On |
Off |
On |
Off |
On |
|
EC000 - EDFFFh |
On |
Off |
On |
On |
Off |
|
EE000 - EFFFFh |
On |
Off |
On |
On |
On |
|
F0000 - F1FFFh |
On |
On |
Off |
Off |
Off |
|
F2000 - F3FFFh |
On |
On |
Off |
Off |
On |
|
F4000 - F5FFFh |
On |
On |
Off |
On |
Off |
|
F6000 - F7FFFh |
On |
On |
Off |
On |
On |
|
F8000 - F9FFFh |
On |
On |
On |
Off |
Off |
|
FA000 - FBFFFh |
On |
On |
On |
Off |
On |
|
FC000 - FDFFFh |
On |
On |
On |
On |
Off |
|
FE000 - FFFFFh |
On |
On |
On |
On |
On |
|
INTERRUPT REQUEST | |||
|
IRQ |
SW2/7 |
SW2/8 | |
| » |
2/9 |
Off |
Off |
|
3 |
Off |
On | |
|
10 |
On |
Off | |
|
11 |
On |
On | |
|
CABLE TYPE | ||
|
Type |
SW3 | |
| » |
Shielded twisted pair (DB-9 port) |
On |
|
Unshielded twisted pair (RJ-45 port) |
Off | |
