KATRON TECHNOLOGIES, INC.

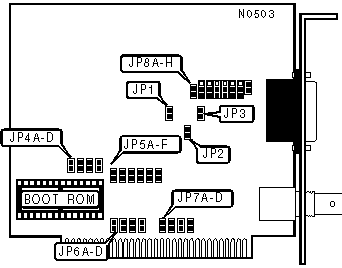

ET-100
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
AUI ETHERNET VERSION | ||
|
Version |
JP1 | |
| » |
Version 2 |
Pins 1 & 2 Closed |
|
Version 1 |
Pins 2 & 3 Closed | |
|
Note:The ethernet version is dependent on the MAU you are using. There should be some indication of the ethernet version on the MAU.
| ||
|
SEGMENT LENGTH | ||
|
Maximum Length |
JP2 | |
| » |
185 meters |
Closed |
|
300 meters |
Open | |
|
Note:Segment length is the total length of cable between the two farthest cards on the segment. Each card on the segment must have this option set the same. | ||
|
ONBOARD TERMINATOR | ||
|
Setting |
JP3 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:If the card is on either end of a network segment, the onboard terminator can be used instead of using an external terminator.
| ||
|
I/O BASE ADDRESS | |||||
|
Address |
JP4A |
JP4B |
JP4C |
JP4D | |
| » |
300h |
Closed |
Open |
Open |
Open |
|
320h |
Open |
Closed |
Open |
Open | |
|
340h |
Open |
Open |
Closed |
Open | |
|
360h |
Closed |
Open |
Open |
Closed | |
|
BOOT ROM | ||
|
Setting |
JP5A | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
BOOT ROM ADDRESS | ||||||
|
Address |
JP5B |
JP5C |
JP5D |
JP5E |
JP5F | |
|
C0000 - C1FFFh |
Closed |
Closed |
Closed |
Closed |
Closed | |
|
C2000 - C3FFFh |
Closed |
Closed |
Closed |
Closed |
Open | |
|
C4000 - C5FFFh |
Closed |
Closed |
Closed |
Open |
Closed | |
|
C6000 - C7FFFh |
Closed |
Closed |
Closed |
Open |
Open | |
| » |
C8000 - C9FFFh |
Closed |
Closed |
Open |
Closed |
Closed |
|
CA000 - CBFFFh |
Closed |
Closed |
Open |
Closed |
Open | |
|
CC000 - CDFFFh |
Closed |
Closed |
Open |
Open |
Closed | |
|
CE000 - CFFFFh |
Closed |
Closed |
Open |
Open |
Open | |
|
D0000 - D1FFFh |
Closed |
Open |
Closed |
Closed |
Closed | |
|
D2000 - D3FFFh |
Closed |
Open |
Closed |
Closed |
Open | |
|
D4000 - D5FFFh |
Closed |
Open |
Closed |
Open |
Closed | |
|
D6000 - D7FFFh |
Closed |
Open |
Closed |
Open |
Open | |
|
D8000 - D9FFFh |
Closed |
Open |
Open |
Closed |
Closed | |
|
DA000 - DBFFFh |
Closed |
Open |
Open |
Closed |
Open | |
|
DC000 - DDFFFh |
Closed |
Open |
Open |
Open |
Closed | |
|
DE000 - DFFFFh |
Closed |
Open |
Open |
Open |
Open | |
|
E0000 - E1FFFh |
Open |
Closed |
Closed |
Closed |
Closed | |
|
E2000 - E3FFFh |
Open |
Closed |
Closed |
Closed |
Open | |
|
E4000 - E5FFFh |
Open |
Closed |
Closed |
Open |
Closed | |
|
E6000 - E7FFFh |
Open |
Closed |
Closed |
Open |
Open | |
|
E8000 - E9FFFh |
Open |
Closed |
Open |
Closed |
Closed | |
|
EA000 - EBFFFh |
Open |
Closed |
Open |
Closed |
Open | |
|
EC000 - EDFFFh |
Open |
Closed |
Open |
Open |
Closed | |
|
EE000 - EFFFFh |
Open |
Closed |
Open |
Open |
Open | |
|
F0000 - F1FFFh |
Open |
Open |
Closed |
Closed |
Closed | |
|
F2000 - F3FFFh |
Open |
Open |
Closed |
Closed |
Open | |
|
INTERRUPT REQUEST | |||||
|
IRQ |
JP6A |
JP6B |
JP6C |
JP6D | |
|
2 |
Closed |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Open |
Closed | |
|
DMA CHANNEL | |||||
|
Channel |
JP7A |
JP7B |
JP7C |
JP7D | |
| » |
Disabled |
Open |
Open |
Open |
Open |
|
DMA1 |
Closed |
Open |
Closed |
Open | |
|
DMA3 |
Open |
Closed |
Open |
Closed | |
|
CABLE TYPE | ||||
|
Type |
JP8A |
JP8B - JP8G |
JP8H | |
| » |
RG-58A/U 50ohm coaxial |
Closed |
Pins 2 & 3 closed |
Open |
|
AUI transceiver via DB-15 port |
Open |
Pins 1 & 2 closed |
Closed | |
