NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

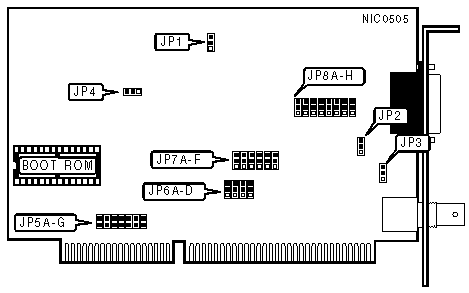

AUI ETHERNET VERSION
Version		JP1
»	Version 2	Pins 1 & 2 Closed
	Version 1	Pins 2 & 3 Closed
Note:The ethernet version is dependent on the MAU you are using. There should be some indication of the ethernet version on the MAU.

SEGMENT LENGTH
Maximum Length		JP2
»	185 meters	Pins 1 & 2 Closed
	300 meters	Pins 2 & 3 Closed
Note:Segment length is the total length of cable between the two farthest cards on the segment. Each card on the segment must have this option set the same.

ONBOARD TERMINATOR
Setting		JP3
»	Disabled	Pins 2 & 3 Closed
	Enabled	Pins 1 & 2 Closed
	Notes:If the card is on either end of a linear bus network segment, the onboard terminator can be used instead of using an external terminator.

COMPATIBILITY MODE
Setting		JP4
»	Disabled	Pins 1 & 2 Closed
	Enabled	Pins 2 & 3 Closed
Note:On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not initializing, enabling compatibility mode may allow the card to operate properly.

INTERRUPT REQUEST
IRQ		JP5A	JP5B	JP5C	JP5D	JP5E	JP5F	JP5G
	2/9	Open	Open	Open	Open	Open	Open	Closed
»	3	Open	Open	Open	Open	Open	Closed	Open
	4	Open	Open	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Closed	Open	Open	Open	Open
	11	Open	Closed	Open	Open	Open	Open	Open
	12	Closed	Open	Open	Open	Open	Open	Open

I/O BASE ADDRESS
Address		JP6A	JP6B	JP6C	JP6D
	200h	Open	Open	Open	Pins 1 & 2 closed
	220h	Open	Open	Pins 1 & 2 closed	Open
	240h	Open	Pins 1 & 2 closed	Open	Open
	260h	Pins 1 & 2 closed	Open	Open	Open
»	300h	Open	Open	Open	Pins 2 & 3 closed
	320h	Open	Open	Pins 2 & 3 closed	Open
	340h	Open	Pins 2 & 3 closed	Open	Open
	360h	Pins 2 & 3 closed	Open	Open	Open

BOOT ROM SIZE
Size	JP7A
8KB	Pins 2 & 3 Closed
16KB	Pins 1 & 2 Closed

BOOT ROM
Setting		JP7B
»	Disabled	Pins 2 & 3 Closed
	Enabled	Pins 1 & 2 Closed

BOOT ROM ADDRESS
Address		JP7C	JP7D	JP7E	JP7F
»	C8000h	PIns 1 & 2 closed	PIns 1 & 2 closed	Pins 2 & 3 closed	PIns 1 & 2 closed
	CC000h	PIns 1 & 2 closed	PIns 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	D0000h	PIns 1 & 2 closed	Pins 2 & 3 closed	PIns 1 & 2 closed	PIns 1 & 2 closed
	D4000h	PIns 1 & 2 closed	Pins 2 & 3 closed	PIns 1 & 2 closed	Pins 2 & 3 closed
	D8000h	PIns 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	PIns 1 & 2 closed
	DC000h	PIns 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

CABLE TYPE
Type		JP8A - JP8H
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed
