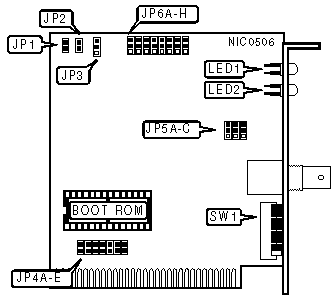

NIC Type	ARCnet
Transfer Rate	2.5Mbps
Data Bus	8-bit ISA
Topology	Star
Wiring Type	RG-62A/U 93ohm coaxial
Boot ROM	Available

NODE ADDRESS
Node	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
0	-	-	-	-	-	-	-	-
1	Off	On	On	On	On	On	On	On
2	On	Off	On	On	On	On	On	On
3	Off	Off	On	On	On	On	On	On
4	On	On	Off	On	On	On	On	On
251	Off	Off	On	Off	Off	Off	Off	Off
252	On	On	Off	Off	Off	Off	Off	Off
253	Off	On	Off	Off	Off	Off	Off	Off
254	On	Off	Off	Off	Off	Off	Off	Off
255	Off	Off	Off	Off	Off	Off	Off	Off
Note:Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1)

CONNECTIONS
Function	Location
External LED1 (See LED table for LED1 indications)	JP1
External LED2 (See LED table for LED2 indications)	JP2

BOOT ROM
Setting		JP3
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

INTERRUPT REQUEST
IRQ		JP4A	JP4B	JP4C	JP4D	JP4E
»	2	Closed	Open	Open	Open	Open
	3	Open	Closed	Open	Open	Open
	4	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP5A	Pins 2 & 3 closed
JP5B	Pins 2 & 3 closed
JP5C	Pins 2 & 3 closed

I/O BASE ADDRESS
Address		JP6F	JP6G	JP6H
	260-26Fh	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	290-29Fh	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
»	2E0-2EFh	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	2F0-2FFh	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	300-30Fh	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	350-35Fh	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	380-38Fh	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	3E0-3EFh	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Red	On	Data is being transmitted or received.
LED2	Red	Off	Data is not being transmitted or received.

BASE MEMORY ADDRESS & BOOT ROM ADDRESS
Base Address		Boot ROM Address	JP6A	JP6B	JP6C	JP6D	JP6E
	C0000-C07FFh	C2000-C3FFFh	Pins 2&3	Pins 2&3	Pins 2&3	Pins 2&3	Pins 2&3
	C0800-C0FFFh	C2000-C3FFFh	Pins 1&2	Pins 2&3	Pins 2&3	Pins 2&3	Pins 2&3
	C1000-C17FFh	C2000-C3FFFh	Pins 2&3	Pins 1&2	Pins 2&3	Pins 2&3	Pins 2&3
	C1800-C1FFFh	C2000-C3FFFh	Pins 1&2	Pins 1&2	Pins 2&3	Pins 2&3	Pins 2&3
	C4000-C47FFh	C6000-C7FFFh	Pins 2&3	Pins 2&3	Pins 1&2	Pins 2&3	Pins 2&3
	C4800-C4FFFh	C6000-C7FFFh	Pins 1&2	Pins 2&3	Pins 1&2	Pins 2&3	Pins 2&3
	C5000-C57FFh	C6000-C7FFFh	Pins 2&3	Pins 1&2	Pins 1&2	Pins 2&3	Pins 2&3
	C5800-C5FFFh	C6000-C7FFFh	Pins 1&2	Pins 1&2	Pins 1&2	Pins 2&3	Pins 2&3
	CC000-CC7FFh	CE000-CFFFFh	Pins 2&3	Pins 2&3	Pins 2&3	Pins 1&2	Pins 2&3
	CC800-CCFFFh	CE000-CFFFFh	Pins 1&2	Pins 2&3	Pins 2&3	Pins 1&2	Pins 2&3
	CD000-CD7FFh	CE000-CFFFFh	Pins 2&3	Pins 1&2	Pins 2&3	Pins 1&2	Pins 2&3
	CD800-CDFFFh	CE000-CFFFFh	Pins 1&2	Pins 1&2	Pins 2&3	Pins 1&2	Pins 2&3
»	D0000-D07FFh	D2000-D3FFFh	Pins 2&3	Pins 2&3	Pins 1&2	Pins 1&2	Pins 2&3
	D0800-D0FFFh	D2000-D3FFFh	Pins 1&2	Pins 2&3	Pins 1&2	Pins 1&2	Pins 2&3
	D1000-D17FFh	D2000-D3FFFh	Pins 2&3	Pins 1&2	Pins 1&2	Pins 1&2	Pins 2&3
	D1800-D1FFFh	D2000-D3FFFh	Pins 1&2	Pins 1&2	Pins 1&2	Pins 1&2	Pins 2&3
	D4000-D47FFh	D6000-D7FFFh	Pins 2&3	Pins 2&3	Pins 2&3	Pins 2&3	Pins 1&2
	D4800-D4FFFh	D6000-D7FFFh	Pins 1&2	Pins 2&3	Pins 2&3	Pins 2&3	Pins 1&2
	D5000-D57FFh	D6000-D7FFFh	Pins 2&3	Pins 1&2	Pins 2&3	Pins 2&3	Pins 1&2
	D5800 D5FFFh	D6000-D7FFFh	Pins 1&2	Pins 1&2	Pins 2&3	Pins 2&3	Pins 1&2
	D8000-D87FFh	DA000-DBFFFh	Pins 2&3	Pins 2&3	Pins 1&2	Pins 2&3	Pins 1&2
	D8800-D8FFFh	DA000-DBFFFh	Pins 1&2	Pins 2&3	Pins 1&2	Pins 2&3	Pins 1&2
	D9000-D97FFh	DA000-DBFFFh	Pins 2&3	Pins 1&2	Pins 1&2	Pins 2&3	Pins 1&2
	D9800-D9FFFh	DA000-DBFFFh	Pins 1&2	Pins 1&2	Pins 1&2	Pins 2&3	Pins 1&2
	DC000-DC7FFh	DE000-DFFFFh	Pins 2&3	Pins 2&3	Pins 2&3	Pins 1&2	Pins 1&2
	DC800-DCFFFh	DE000-DFFFFh	Pins 1&2	Pins 2&3	Pins 2&3	Pins 1&2	Pins 1&2
	DD000-DD7FFh	DE000-DFFFFh	Pins 2&3	Pins 1&2	Pins 2&3	Pins 1&2	Pins 1&2
	DD800-DDFFFh	DE000-DFFFFh	Pins 1&2	Pins 1&2	Pins 2&3	Pins 1&2	Pins 1&2
	E0000-E07FFh	E2000-E3FFFh	Pins 2&3	Pins 2&3	Pins 1&2	Pins 1&2	Pins 1&2
	E0800-E0FFFh	E2000-E3FFFh	Pins 1&2	Pins 2&3	Pins 1&2	Pins 1&2	Pins 1&2
	E1000-E17FFh	E2000-E3FFFh	Pins 2&3	Pins 1&2	Pins 1&2	Pins 1&2	Pins 1&2
	E1800-E1FFFh	E2000-E3FFFh	Pins 1&2	Pins 1&2	Pins 1&2	Pins 1&2	Pins 1&2
Note:Pins designated should be in the closed position.
