LANTECH TECHNOLOGY, INC.
PTC-1001 SERIES
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
Shielded/Unshielded Twisted Pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
COMPATIBILITY MODE | ||
|
Setting |
JP1A | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not
| ||
|
BOOT ROM | ||
|
Setting |
JP1B | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BASE MEMORY ADDRESS | ||||
|
Address |
JP1C |
JP1D |
JP1E | |
|
C0000h |
Open |
Open |
Open | |
|
C4000h |
Closed |
Open |
Open | |
|
C8000h |
Open |
Closed |
Open | |
|
CC000h |
Closed |
Closed |
Open | |
| » |
D0000h |
Open |
Open |
Closed |
|
D4000h |
Closed |
Open |
Closed | |
|
D8000h |
Open |
Closed |
Closed | |
|
DC000h |
Closed |
Closed |
Closed | |
|
I/O BASE ADDRESS | |||
|
I/O |
JP1F |
JP1G | |
| » |
300h |
Open |
Open |
|
320h |
Open |
Closed | |
|
340h |
Closed |
Open | |
|
360h |
Closed |
Closed | |
|
INTERRUPT REQUEST | ||||||||||
|
IRQ |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E |
JP2F |
JP2G |
JP2H |
JP2I | |
|
2/9 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
CABLE TYPE | ||
|
Type |
JP5 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
Shielded/Unshielded Twisted Pair |
Pins 2 & 3 closed | |
|

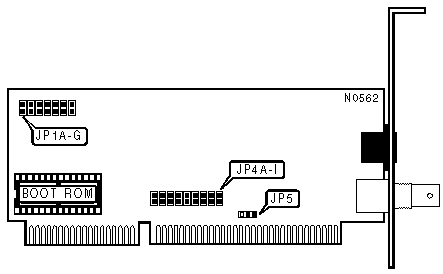

Note:The PTC-1001 BASE 2 model has a RG-58A/U 50ohm coaxial connector only. The PTC-1001 BASE T model has a Shielded/Unshielded Twisted Pair connector only. The PTC-1001 BASE 2/T model (shown in diagram) has both RG-58A/U 50ohm coaxial and Shielded/Unshielded Twisted Pair connectors. | ||
