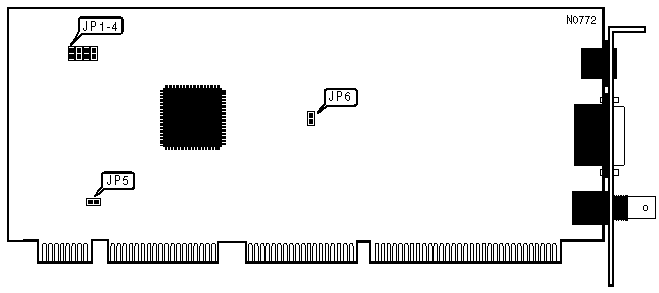

INFORMTECH INTERNATIONAL, INC.
VL320T
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
AUI transceiver via DB-15
|
|
Boot ROM |
Available(location unidentified) |
|
ZERO WAIT STATE | ||
|
Setting |
JP5 | |
| » |
Enabled |
Open |
|
Disabled |
Closed | |
|
ETHERNET CABLE TYPE SELECT | |
|
Type |
JP6 |
|
Thick Ethernet |
Open |
|
Thin Ethernet |
Closed |
|
ADDRESS/INTERRUPT/CABLE TYPE SELECT | |||||||
|
Address |
IRQ |
Cable Type |
JP1 |
JP2 |
JP3 |
JP4 | |
| » |
300h |
IRQ2 |
Twisted pair |
Off |
On |
On |
On |
|
300h |
IRQ2 |
Ethernet |
Off |
Off |
On |
On | |
|
320h |
IRQ10 |
Twisted pair |
Off |
On |
On |
Off | |
|
320h |
IRQ10 |
Ethernet |
Off |
Off |
On |
Off | |
|
340h |
IRQ11 |
Twisted pair |
Off |
On |
Off |
On | |
|
340h |
IRQ11 |
Ethernet |
Off |
Off |
Off |
On | |
|
360h |
IRQ3 |
Twisted pair |
Off |
On |
Off |
Off | |
