NIC Type	Ethernet repeater
Transfer Rate	10Mbps
Data Bus	Proprietary
Topology	Linear bus
Wiring Type	RG58A/U 50ohm coaxial Unshielded twisted pair
Boot ROM	Not Available

CABLE TYPE

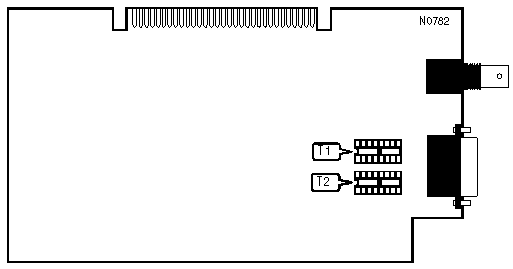

Type	T1	T2
RG58A/U 50ohm coaxial	Installed	Not installed
Unshielded twisted pair	Not installed	Installed

MISCELLANEOUS TECHNICAL NOTE

Note: This card is a component used in the TP Hub/64 twisted pair Ethernet hub.
