NIC Type	Ethernet repeater
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear bus
Wiring Type	Unshielded twisted pair
Boot ROM	Not Available

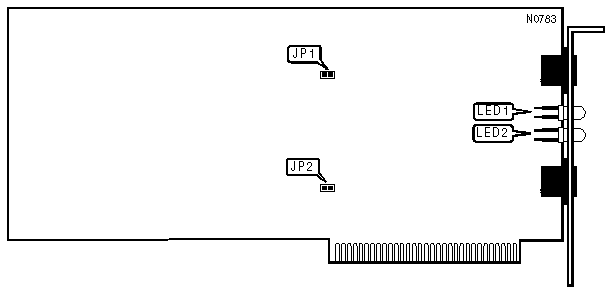

PRIMARY PORT LINK INTEGRITY TEST
Setting		JP1
»	Enabled	Closed
	Disabled	Open

ALTERNATE PORT LINK INTEGRITY TEST
Setting		JP2
»	Enabled	Closed
	Disabled	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Twisted pair network connection for port 1 is good
LED1	Green	Off	Twisted pair network connection for port 1 is broken
LED2	Green	On	Twisted pair network connection for port 2 is good
LED2	Green	Off	Twisted pair network connection for port 2 is broken
