NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

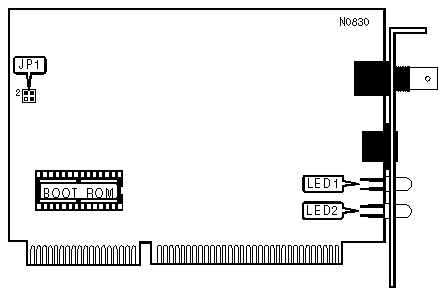

BOARD NUMBER SELECTION
Board Number	JP1
1	Pins 1 & 2, 3 & 4 closed
2	Pins 3 & 4 closed
3	Pins 1 & 2 closed
4	Open

DIAGNOSTIC LEDS
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Yellow	On	Polarity normal
LED2	Yellow	Off	Polarity reversed
