INVISIBLE SOFTWARE, INC.

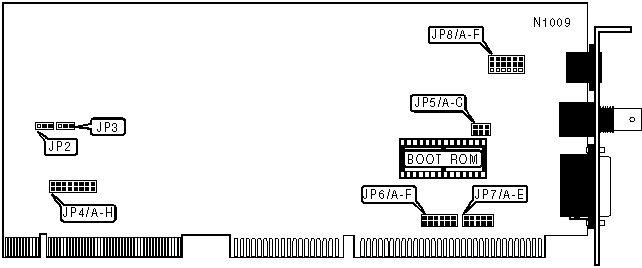

ETHERNET VL3200
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
VESA local bus |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
CABLE TYPE SELECTION |
||
|
Cable Type |
JP8/A-F |
|
|
» |
RG-58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
AUI Transceiver via DB-15 port |
All open |
|
|
Unshielded twisted pair |
Pins 1 & 2 closed |
|
|
BASE I/O ADDRESS SELECTION |
|||
|
Address |
JP5/A |
JP5/B |
JP5/C |
|
200h |
Open |
Closed |
Closed |
|
220h |
Closed |
Closed |
Closed |
|
280h |
Open |
Open |
Closed |
|
300h |
Open |
Open |
Open |
|
320h |
Closed |
Open |
Open |
|
340h |
Open |
Closed |
Open |
|
360h |
Closed |
Closed |
Open |
|
INTERRUPT SELECTION |
||||||||||||
|
IRQ |
JP6/A |
JP6/B |
JP6/C |
JP6/D |
JP6/E |
JP6/F |
JP7/A |
JP7/B |
JP7/C |
JP7/D |
JP7/E |
|
|
» |
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
14 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
SHARED RAM SIZE |
|||
|
Size |
JP2 |
JP3 |
|
|
» |
32KB |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
16KB |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
|
ROM ADDRESS |
||||||||
|
Address |
JP4/A |
JP4/B |
JP4/C |
JP4/D |
JP4/E |
JP4/F |
JP4/G |
JP4/H |
|
Disabled |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
C000h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
C400h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
C800h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
CC00h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
D000h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
D400h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
D800h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
DC00h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
