KYE INTERNATIONAL CORPORATION
GE2000III-2
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

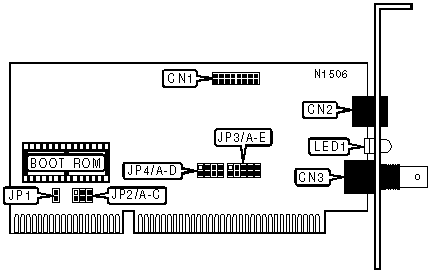

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AUI transceiver |
CN1 |
RG-58A/U 50ohm coaxial port |
CN3 |
|
Shielded/Unshielded twisted pair port |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Jumperless mode |
JP1 |
Open |
|
Jumper mode |
JP1 |
Closed |
|
INTERRUPT SELECTION | ||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C | |
| » |
2/9 |
Open |
Open |
Open |
|
3 |
Open |
Open |
Closed | |
|
4 |
Open |
Closed |
Open | |
|
5 |
Open |
Closed |
Closed | |
|
10 |
Closed |
Open |
Open | |
|
11 |
Closed |
Open |
Closed | |
|
12 |
Closed |
Closed |
Open | |
|
15 |
Closed |
Closed |
Closed | |
|
BOOT ROM CONFIGURATION | ||||||
|
Setting |
JP3/A |
JP3/B |
JP3/C |
JP3/D |
JP3/E | |
| » |
Disabled |
Open |
Open |
Open |
Open |
Open |
|
C000h, 32K |
Open |
Open |
Open |
Closed |
Open | |
|
C800h, 32K |
Closed |
Open |
Open |
Closed |
Open | |
|
D000h, 32K |
Open |
Closed |
Open |
Closed |
Open | |
|
D800h, 32K |
Closed |
Closed |
Open |
Closed |
Open | |
|
C000h, 64K |
Open |
Open |
Closed |
Closed |
Open | |
|
D000h, 64K |
Closed |
Open |
Closed |
Closed |
Open | |
|
C000h, 16K |
Open |
Open |
Open |
Open |
Closed | |
|
C400h, 16K |
Closed |
Open |
Open |
Open |
Closed | |
|
C800h, 16K |
Open |
Closed |
Open |
Open |
Closed | |
|
CC00h, 16K |
Closed |
Closed |
Open |
Open |
Closed | |
|
D000h, 16K |
Open |
Open |
Closed |
Open |
Closed | |
|
D400h, 16K |
Closed |
Open |
Closed |
Open |
Closed | |
|
D800h, 16K |
Open |
Closed |
Closed |
Open |
Closed | |
|
DC00h, 16K |
Closed |
Closed |
Closed |
Open |
Closed | |
|
C000h, Page |
Open |
Open |
Open |
Closed |
Closed | |
|
C400h, Page |
Closed |
Open |
Open |
Closed |
Closed | |
|
C800h, Page |
Open |
Closed |
Open |
Closed |
Closed | |
|
CC00h, Page |
Closed |
Closed |
Open |
Closed |
Closed | |
|
D000h, Page |
Open |
Open |
Closed |
Closed |
Closed | |
|
D400h, Page |
Closed |
Open |
Closed |
Closed |
Closed | |
|
D800h, Page |
Open |
Closed |
Closed |
Closed |
Closed | |
|
DC00h, Page |
Closed |
Closed |
Closed |
Closed |
Closed | |
|
BASE I/O ADDRESS SELECTION | |||||
|
Address |
JP4/A |
JP4/B |
JP4/C |
JP4/D | |
|
200h |
Open |
Open |
Closed |
Open | |
|
220h |
Closed |
Open |
Closed |
Open | |
|
240h |
Open |
Closed |
Closed |
Open | |
|
260h |
Closed |
Closed |
Closed |
Open | |
|
280h |
Open |
Open |
Closed |
Closed | |
|
2A0h |
Closed |
Open |
Closed |
Closed | |
|
2C0h |
Open |
Closed |
Closed |
Closed | |
|
2E0h |
Closed |
Closed |
Closed |
Closed | |
| » |
300h |
Open |
Open |
Open |
Open |
|
320h |
Closed |
Open |
Open |
Open | |
|
340h |
Open |
Closed |
Open |
Open | |
|
360h |
Closed |
Closed |
Open |
Open | |
|
380h |
Open |
Open |
Open |
Closed | |
|
3A0h |
Closed |
Open |
Open |
Closed | |
|
3C0h |
Open |
Closed |
Open |
Closed | |
|
3E0h |
Closed |
Closed |
Open |
Closed | |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good |
|
LED1 |
Off |
Network connection is broken |
