NIC Type	Ethernet
Network Transfer Rate	10/100Mbps
Data Bus	32-bit PCI
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

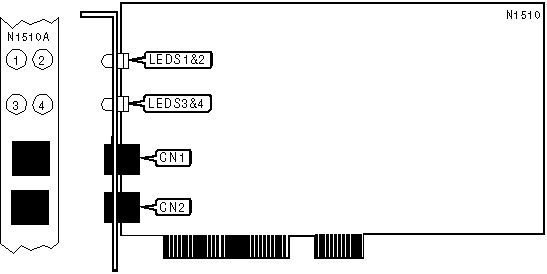

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port (100Mbps)	CN1	Unshielded twisted pair port (10Mbps)	CN2

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	10Mbps mode is selected
LED1	Off	10Mbps mode is not selected
LED2	On	100Mbps mode is selected
LED2	Off	100Mbps mode is not selected
LED3	Blinking	Data is being transmitted/received
LED3	Off	Data is not being transmitted/received
LED4	On	Network connection is good
LED4	Off	Network connection is broken
