NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	Parallel
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

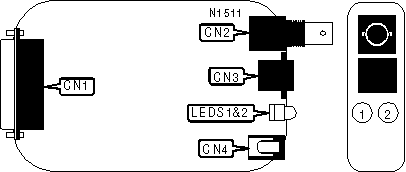

CONNECTIONS
Function	Label	Function	Label
Parallel port	CN1	Unshielded twisted pair port	CN3
RG-58A/U 50ohm coaxial port	CN2	DC power port	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	10Base-T network connection is good
LED1	Green	Blinking	10Base-T network connection is faulty or 10Base-T is at the end of the UTP link
LED1	Green	Off	10Base-T network connection is broken
LED2	Yellow	On	Large packets of data are being transmitted/received
LED2	Yellow	Blinking	Small packets of data are being transmitted/received
LED2	Yellow	Off	Data is not being transmitted/received
