Card Type	Ethernet repeater
Network Transfer Rate	10Mbps
Data Bus	External
Topology	Star
Wiring Type	Unshielded twisted pair Fiber optic cable

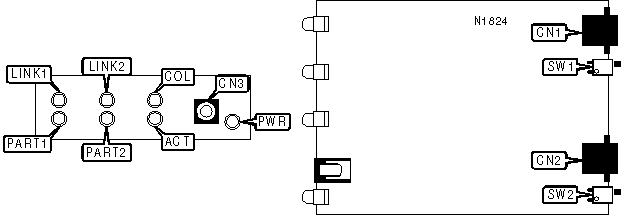

CONNECTIONS
Function	Label	Function	Label
Segment 1 unshielded twisted pair	CN1	DC power	CN3
Segment 2 unshielded twisted pair	CN2

USER CONFIGURABLE SETTINGS
Setting	Label	Position
Link detect function enabled on segment 1	SW1	On
Link detect function disabled on segment 1	SW1	Off
Link detect function enabled on segment 2	SW2	On
Link detect function disabled on segment 2	SW2	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK1	Green	On	Network connection on segment 1 is good
LINK1	Green	Off	Network connection on segment 1 is broken
PART1	Yellow	On	Multiple collisions detected on segment 1
PART1	Yellow	Off	Multiple collisions not detected on segment 1
LINK2	Green	On	Network connection on segment 2 is good
LINK2	Green	Off	Network connection on segment 2 is broken
PART2	Yellow	On	Multiple collisions detected on segment 2
PART2	Yellow	Off	Multiple collisions not detected on segment 2
COL	Amber	On	Collision detected
COL	Amber	Off	Collision not detected
ACT	Yellow	On	Repeater is transmitting or receiving
ACT	Yellow	Off	Repeater is not transmitting or receiving
PWR	Green	On	Power is on
PWR	Green	Off	Power is off
