Card Type	Ethernet repeater
Network Transfer Rate	10Mbps
Data Bus	External
Topology	Linear Bus/Star
Wiring Type	RG-58A/U 50ohm coaxial Fiber optic cable

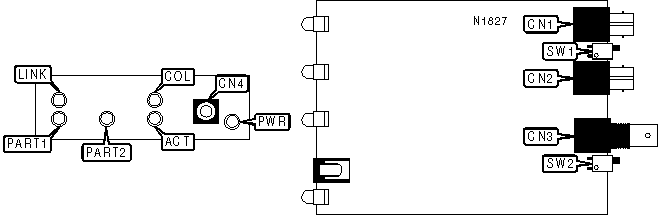

CONNECTIONS
Function	Label	Function	Label
Segment 1 SMA transmit fiber optic cable	CN1	Segment 2 RG-58A/U 50ohm coaxial	CN3
Segment 1 SMA receive fiber optic cable	CN2	DC power	CN4

USER CONFIGURABLE SETTINGS
Setting	Label	Position
Segment 1 uses FOIRL standard	SW1	On
Segment 1 uses 10Base-FL standard	SW1	Off
Segment 2 terminated	SW2	On
Segment 2 not terminated	SW2	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK	Green	On	Network connection on segment 1 is good
LINK	Green	Off	Network connection on segment 1 is broken
PART1	Yellow	On	Multiple collisions detected on segment 1
PART1	Yellow	Off	Multiple collisions not detected on segment 1
PART2	Yellow	On	Multiple collisions detected on segment 2
PART2	Yellow	Off	Multiple collisions not detected on segment 2
COL	Amber	On	Collision detected
COL	Amber	Off	Collision not detected
ACT	Yellow	On	Repeater is transmitting or receiving
ACT	Yellow	Off	Repeater is not transmitting or receiving
PWR	Green	On	Power is on
PWR	Green	Off	Power is off
