NIC Type	ATM (OC-3c)
Maximum Onboard Memory	1MB RAM/128KB SRAM
Boot ROM	Not available
Network Transfer Rate	155Mbps
Topology	Star
Wire Type	Fiber optic cable
Data Bus	32-bit PCI
Card Size	Full height, half length

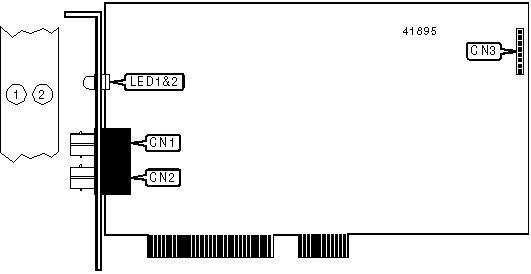

CONNECTIONS
Function	Label	Function	Label
Fiber optic SC receive cable connector	CN1	Unidentified	CN3
Fiber optic SC transmit cable connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Power is on
LED1	Yellow	Blinking	Driver is running
LED1	Yellow	Off	Power is off or card failed power-up self-test
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
