Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair (RJ-45), RG-58A/U 50ohm coaxial
Data Bus	8-bit ISA

CONNECTIONS
Function	Label	Function	Label
UTP connector (RJ-45)	CN1	BNC connector	CN2

PLUG AND PLAY CONFIGURATION
	JP4/A	JP4/B
Plug and play enabled	Open	Closed
Jumpers enabled	Closed	Open

BASE I/O ADDRESS SELECTION
Setting	JP2/A	JP2/B	JP2/C	JP2/D
2E0h	Closed	Closed	Closed	Closed
2C0h	Open	Closed	Closed	Closed
2A0h	Closed	Open	Closed	Closed
280h	Open	Open	Closed	Closed
260h	Closed	Closed	Closed	Open
240h	Open	Closed	Closed	Open
220h	Closed	Open	Closed	Open
200h	Open	Open	Closed	Open
3E0h	Closed	Closed	Open	Closed
3C0h	Open	Closed	Open	Closed
3A0h	Closed	Open	Open	Closed
380h	Open	Open	Open	Closed
360h	Closed	Closed	Open	Open
340h	Open	Closed	Open	Open
320h	Closed	Open	Open	Open
300h	Open	Open	Open	Open

INTERRUPT SELECTION
IRQ	JP3/A	JP3/B	JP3/C
2/9	Open	Open	Open
3	Closed	Open	Open
4	Open	Closed	Open
5	Closed	Closed	Open
10	Open	Open	Closed
11	Closed	Open	Closed
12	Open	Closed	Closed
15	Closed	Closed	Closed

ROM ADDRESS SELECTION
Address	JP1/A	JP1/B	JP1/C	JP1/D	JP1/E
Disabled	Open	Open	Open	Open	Open
C0000h, 16K	Open	Open	Open	Open	Closed
C4000h, 16K	Closed	Open	Open	Open	Closed
C8000h, 16K	Open	Closed	Open	Open	Closed
CC000h, 16K	Closed	Closed	Open	Open	Closed
D0000h, 16K	Open	Open	Closed	Open	Closed
D4000h, 16K	Closed	Open	Closed	Open	Closed
D8000h, 16K	Open	Closed	Closed	Open	Closed
DC000h, 16K	Closed	Closed	Closed	Open	Closed
C0000h, 32K	Open	Open	Open	Closed	Open
C8000h, 32K	Closed	Open	Open	Closed	Open
D0000h, 32K	Open	Closed	Open	Closed	Open
D8000h, 32K	Closed	Closed	Open	Closed	Open
C0000h, 64K	Open	Open	Closed	Closed	Open
D0000h, 64K	Closed	Open	Closed	Closed	Open

MISCELLANEOUS TECHNICAL NOTES

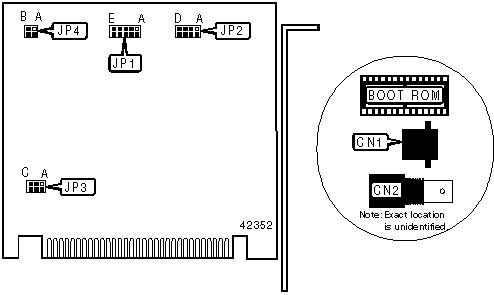

On some versions of this card, the orientation of the jumpers may be different than shown.
