INVISIBLE SOFTWARE, INC.
ETHERNET 2000C/V2.3
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus |
|
Wiring Type |
AUI,RG-58A/U 50ohm coaxial |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
BNC connector |
J6 |
AUI connector |
P1 |
|
External LED connector |
JP11 |
|
|
|

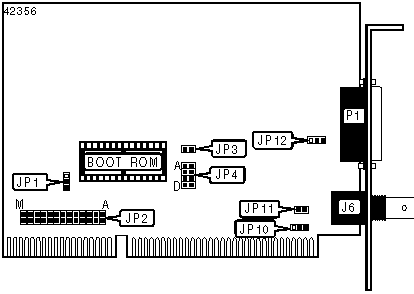

USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Main board compatibility jumper disabled |
JP1 |
Pins 1 & 2 closed |
|
|
Main board compatibility jumper option enabled |
JP1 |
Pins 2 & 3 closed |
|
|
Boot ROM enabled |
JP3 |
Closed |
|
|
Boot ROM disabled |
JP3 |
Open |
|
BASE I/O ADDRESS SELECTION |
|||
|
Setting |
JP2/A |
JP2/B |
|
|
» |
300h |
Closed |
Closed |
|
|
320h |
Closed |
Open |
|
|
340h |
Open |
Closed |
|
|
360h |
Open |
Open |
|
INTERRUPT SELECTION |
|||||||
|
IRQ |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G |
JP2/H |
|
|
» |
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
6 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
|
9 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
14 |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
|
INTERRUPT SELECTION CONTINUED |
||||||
|
IRQ |
JP2/I |
JP2/j |
JP2/K |
JP2/L |
JP2/M |
|
|
» |
3 |
Open |
Open |
Open |
Open |
Open |
|
|
4 |
Open |
Open |
Open |
Open |
Open |
|
|
5 |
Open |
Open |
Open |
Open |
Open |
|
|
6 |
Open |
Open |
Open |
Open |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Open |
|
|
9 |
Open |
Open |
Open |
Open |
Open |
|
|
10 |
Closed |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Closed |
Open |
Open |
Open |
|
|
12 |
Open |
Open |
Closed |
Open |
Open |
|
|
14 |
Open |
Open |
Open |
Closed |
Open |
|
|
15 |
Open |
Open |
Open |
Open |
Closed |
|
CABLE TYPE SELECTION |
|||
|
Type |
JP10 |
JP12 |
|
|
|
AUI transceiver via DB-15 port |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
» |
RG-58A/U 50ohm coaxial |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
ROM ADDRESS SELECTION |
|||||
|
Address |
JP4/A |
JP4/B |
JP4/C |
JP4/D |
|
|
|
C000h |
Closed |
Closed |
Closed |
Closed |
|
|
C400h |
Closed |
Closed |
Closed |
Open |
|
» |
C800h |
Closed |
Closed |
Open |
Closed |
|
|
CC00h |
Closed |
Closed |
Open |
Open |
|
|
D000h |
Closed |
Open |
Closed |
Closed |
|
|
D400h |
Closed |
Open |
Closed |
Open |
|
|
D800h |
Closed |
Open |
Open |
Closed |
|
|
DC00h |
Closed |
Open |
Open |
Open |
