Card Type	Network Interface Card
NIC Type	Ethernet
Network Transfer Rate	100Mbps/10Mbps
Topology	Star
Wiring Type	RJ-45 Shielded twisted pair RJ-45 Unshielded twisted pair
Data Bus	32-bit PCI

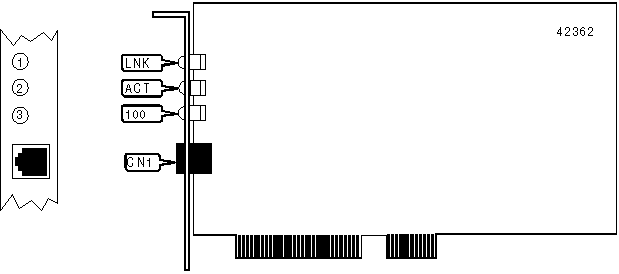

CONNECTIONS
Function	Label
RJ-45 UTP/STP connector	CN1

LED LABELS
Function	Label
Link LED	LNK
Activity LED	ACT
100 Mbps LED	100

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LNK	Unidentified	On	Network connection is good
LNK	Unidentified	Off	Network connection is broken
ACT	Unidentified	Blinking	Data is being transmitted/received
ACT	Unidentified	Off	Data is not being transmitted/received
100	Unidentified	On	Network is operating at 100 Mbps
100	Unidentified	Off	Network is operating at 10 Mbps
