Card Type	Transceiver
NIC Type	Ethernet
Network Transfer Rate	100Mbps
Topology	Star
Wiring Type	Fiber optic cable (2), Media Independent Interface (MII)
Data Bus	External

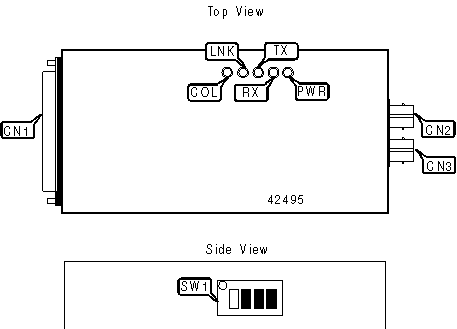

CONNECTIONS
Function	Label	Function	Label
40-pin MII interface	CN1	Fiber optic ST connector - transmit	CN3
Fiber optic ST connector - receive	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
Half-Duplex mode	SW1/1	On
Full-Duplex mode	SW1/1	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	Power is being received from the DTE device
PWR	Unidentified	Off	Power is not being received from the DTE device
LNK	Unidentified	On	Link is good
LNK	Unidentified	Off	Link is broken
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	Off	Data is not being received
COL	Unidentified	On	Collision detected on network
COL	Unidentified	Off	No collision detected on network

MISCELLANEOUS TECHNICAL NOTES

SW1/2 - 4 control the PHY settings. The exact configuration information is unavailable.
