NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG--58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Not Available

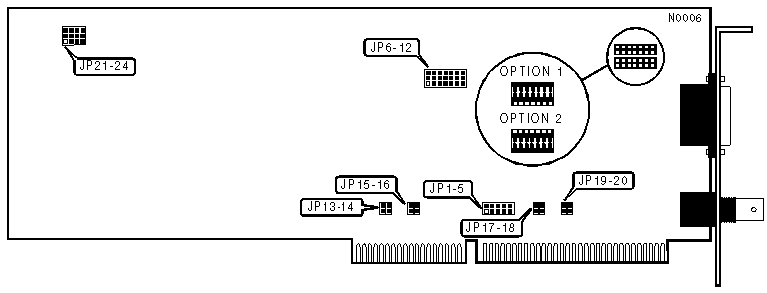

INTERRUPT REQUEST
IRQ	JP1	JP2	JP3	JP4	JP5
3	Closed	Open	Open	Open	Open
5	Open	Closed	Open	Open	Open
9	Open	Open	Closed	Open	Open
11	Open	Open	Open	Closed	Open
15	Open	Open	Open	Open	Closed

I/O BASE ADDRESS
Address	JP6	JP7	JP8	JP9	JP10	JP11	JP12
300h	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2
308h	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3
310h	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2
318h	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3
320h	Pins 2 & 3	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2
Note:Pins designated should be in the closed position.

DMA CHANNEL
Channel	JP13 - JP14	JP15 - JP16	JP17 - JP18	JP19 - JP20
DMA1	Open	Open	Closed	Open
DMA3	Open	Open	Open	Closed
DMA5	Open	Closed	Open	Open
DMA7	Closed	Open	Open	Open
Disabled	Open	Open	Open	Open

CABLE TYPE
Type		Option setting
»	RG-58A/U 50ohm coaxial	Option 1
	AUI transceiver via DB-15 port	Option 2

FACTORY CONFIGURED SETTINGS - DO NOT ALTER
Jumper	Setting
JP21	Pins 1 & 2 Closed
JP24	Pins 1 & 2 Closed

MISCELLANEOUS NOTES

This card can only be used in a file server, not in a workstation.
