MYLEX CORPORATION
LNA390A (32-BIT AT32)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit AT32 (Proprietary) |
|
Topology |
Linear Bus |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Not Available |
|

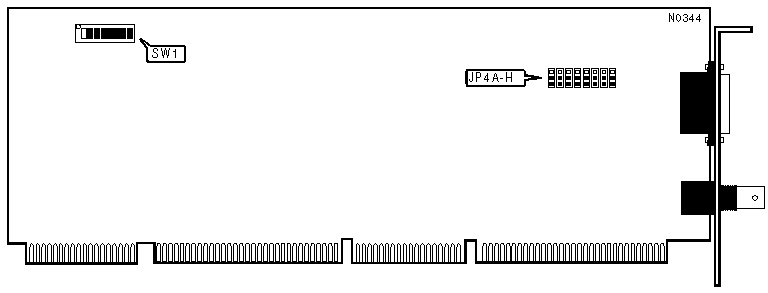

CABLE TYPE | |
|
Type |
JP4A - JP4H |
|
RG58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 closed |
|
CARD CONFIGURATION (I/O ADDRESS AND BASE MEMORY ADDRESS) | |||||||||||
|
I/O |
IRQ |
Base |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
300h |
3 |
FF000h |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
320h |
2 |
FE000h |
Off |
On |
On |
On |
Off |
Off |
Off |
On | |
|
340h |
4 |
FD000h |
On |
Off |
On |
Off |
On |
Off |
On |
On | |
|
360h |
5 |
FC000h |
On |
On |
Off |
On |
On |
On |
Off |
On | |
