NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

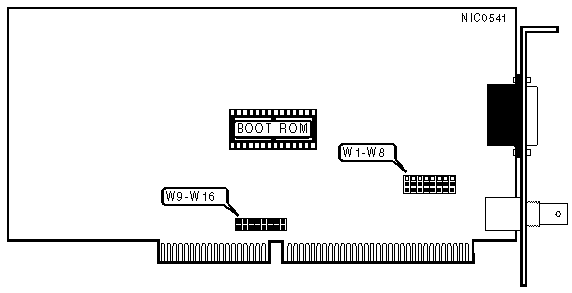

CABLE TYPE
Type		W1 - W8
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed

I/O BASE ADDRESS
Address		W9	W10
»	300h	On	On
	320h	Off	On
	340h	On	Off
	360h	Off	Off

BOOT ROM
Setting		W11
»	Disabled	Open
	Enabled	Closed

INTERRUPT REQUEST
IRQ		W12	W13	W14	W15
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

COMPATIBILITY MODE
Setting		W16
»	Disabled	Closed
	Enabled	Open
Note:If the host system is a Compaq 286, IBM PC 30-286, or any PC with a Chips and Technologies chipset, compatibility mode must be enabled (W16 - open).
