NDC COMMUNICATIONS, INC.
ND1120
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Unshielded twisted pair (IBM Type 3) Shielded twisted pair via DB-9 port (IBM Type 1) |
|
Boot ROM |
Available |
|

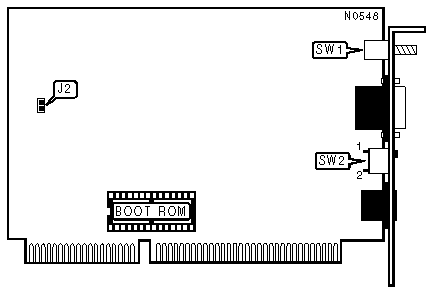

PRIMARY/ALTERNATE CARD |
||
|
Setting |
SW1 |
|
|
» |
Primary |
Open (Switch not pushed in) |
|
|
Alternate |
Closed (Switch pushed in) |
Note: If two of these cards are to be used in a single system, one of the cards must be set to primary and the other card must be set to alternate. |
||
|
CABLE TYPE |
||
|
Type |
SW2 |
|
|
» |
Shielded twisted pair via DB-9 port (IBM Type 1) |
Position 1 |
|
|
Unshielded twisted pair (IBM Type 3) |
Position 2 |
|
COMPATIBILITY MODE |
||
|
Setting |
J2 |
|
|
» |
128KB address block may be shared with other adapters installed in the system provided there are no conflicts in that memory location. |
Closed |
|
|
128KB address block can only be shared with other 16-bit adapters provided there are no conflicts in that memory location. |
Open |
|
BOOT ROM CONFIGURATION NOTES |
|
If a Boot ROM is installed, the card must be configured to operate in 8-bit mode (using software setup). |
