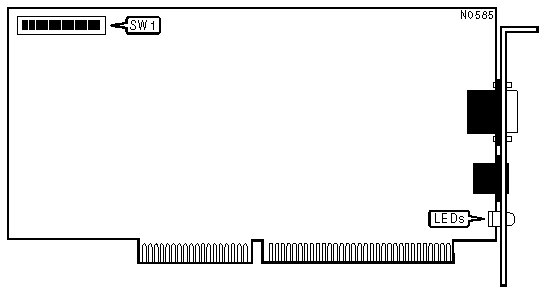

NETWORTH, INC.
UTPTRA TOKEN RING
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Token-Ring |
|
Wiring Type |
Shielded twisted pair via DB-9
|
|
Boot ROM |
Available (in firmware) |
|
I/O BASE ADDRESS | ||
|
Address |
SW1/1 | |
| » |
A20h |
On |
|
A24h |
Off | |
|
NETWORK SPEED | ||
|
Speed |
SW1/2 | |
|
4Mbps |
On | |
| » |
16Mbps |
Off |
|
Note:All cards on a segment must have this option set the same. | ||
|
SHARED RAM CONFIGURATION | |||
|
Size |
SW1/3 |
SW1/4 | |
|
8KB |
On |
On | |
| » |
16KB |
Off |
On |
|
32KB |
On |
Off | |
|
64KB |
Off |
Off | |
|
Note:This setting configures how much system memory the card will use. | |||
|
INTERRUPT REQUEST | |||
|
IRQ |
SW1/5 |
SW1/6 | |
| » |
2/9 |
On |
On |
|
3 |
Off |
On | |
|
6 |
On |
Off | |
|
7 |
Off |
Off | |
|
BOOT ROM ADDRESS | |||||||
|
Address |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
SW1/11 |
SW1/12 | |
|
C0000-C1FFFh |
Off |
Off |
Off |
Off |
Off |
On | |
|
C2000-C3FFFh |
On |
Off |
Off |
Off |
Off |
On | |
|
C4000-C5FFFh |
Off |
On |
Off |
Off |
Off |
On | |
|
C6000-C7FFFh |
On |
On |
Off |
Off |
Off |
On | |
|
C8000-C9FFFh |
Off |
Off |
On |
Off |
Off |
On | |
|
CA000-CBFFFh |
On |
Off |
On |
Off |
Off |
On | |
| » |
CC000-CDFFFh |
Off |
On |
On |
Off |
Off |
On |
|
CE000-CFFFFh |
On |
On |
On |
Off |
Off |
On | |
|
D0000-D1FFFh |
Off |
Off |
Off |
On |
Off |
On | |
|
D2000-D3FFFh |
On |
Off |
Off |
On |
Off |
On | |
|
D4000-D5FFFh |
Off |
On |
Off |
On |
Off |
On | |
|
D6000-D7FFFh |
On |
On |
Off |
On |
Off |
On | |
|
D8000-D9FFFh |
Off |
Off |
On |
On |
Off |
On | |
|
DA000-DBFFFh |
On |
Off |
On |
On |
Off |
On | |
| » |
DC000-DDFFFh |
Off |
On |
On |
On |
Off |
On |
|
DE000-DFFFFh |
On |
On |
On |
On |
Off |
On | |
|
E0000-E1FFFh |
Off |
Off |
Off |
Off |
On |
On | |
|
E2000-E3FFFh |
On |
Off |
Off |
Off |
On |
On | |
|
E4000-E5FFFh |
Off |
On |
Off |
On |
Off |
On | |
|
E6000-E7FFFh |
On |
On |
Off |
Off |
On |
On | |
|
E8000-E9FFFh |
Off |
Off |
On |
Off |
On |
On | |
|
EA000-EBFFFh |
On |
Off |
On |
Off |
On |
On | |
|
EC000-EDFFFh |
Off |
On |
On |
Off |
On |
On | |
|
EE000-EFFFFh |
On |
On |
On |
Off |
On |
On | |
|
F0000-F1FFFh |
Off |
Off |
Off |
On |
On |
On | |
|
F2000-F3FFFh |
On |
Off |
Off |
On |
On |
On | |
|
F4000-F5FFFh |
Off |
On |
Off |
On |
On |
On | |
|
F6000-F7FFFh |
On |
Off |
On |
On |
On |
On | |
|
F8000-F9FFFh |
Off |
Off |
On |
On |
On |
On | |
|
FA000-FBFFFh |
On |
Off |
On |
On |
On |
On | |
|
FC000-FDFFFh |
Off |
On |
On |
On |
On |
On | |
|
FE000-FFFFFh |
On |
On |
On |
On |
On |
On | |
|
Note:CC000h or DC000h are the recommended default settings. | |||||||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
Off |
Network speed 4Mbps |
|
LED1 |
Green |
On |
Network speed 16Mbps |
|
LED2 |
Yellow |
Off |
Data is not being transmitted/received |
|
LED2 |
Yellow |
On |
Data is being transmitted/received |
