NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8/16-bit ISA
Topology	Linear Bus
Wiring Type	Unshielded twisted pair
Boot ROM	Available

NIC EPROM RESET
Function		W1
	Compatibility mode enabled	Pins 1 & 2 closed
»	Enhanced mode enabled	Pins 2 & 3 closed
Note:Compatibility mode should be enabled when the NIC is installed in main board slot 0, or if system NIC is installed in utilizes an earlier model Intel processor.

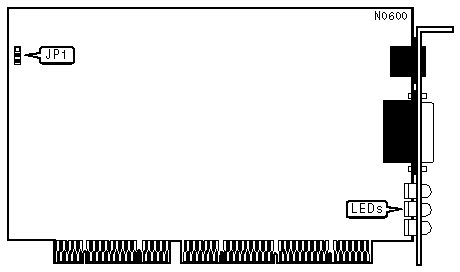

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	data is being received
LED1	Green	Off	data is not being received
LED2	Red	On	Twisted pair reversed polarity, card compensating
LED2	Red	Off	Twisted pair proper polarity/10BaseT not in use
LED3	Green	On	data is being transmitted
LED3	Green	Off	data is not being transmitted
LED4	Yellow	On	10BaseT port in use
LED4	Yellow	Off	10BaseT port not in use
LED5	Green	On	Link integrity exists
LED5	Green	Off	Link integrity broken
LED6	Yellow	On	Network collision detected
LED6	Yellow	Off	Normal operation
Note:LED5 is only functional when link integrity is enabled
