MADGE NETWORKS, LTD.
STRAIGHT BLUE 16/4 MC
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Token ring |
|
Wiring Type |
Unshielded twisted pair Shielded twisted pair via DB9 |
|
Boot ROM |
Available (in firmware) |
|

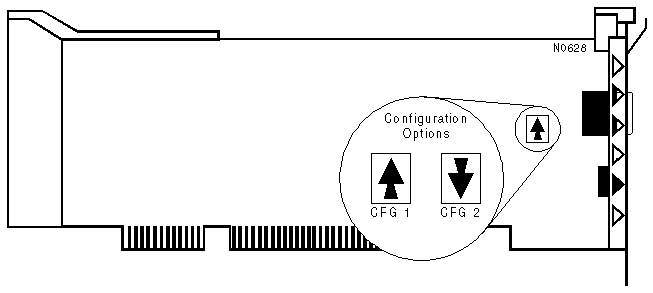

CABLING TYPE | |
|
Type |
Configuration |
|
Shielded twisted pair |
CFG 1 |
|
Unshielded twisted pair |
CFG 2 |
