NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair (located on external box)
Boot ROM	Not available

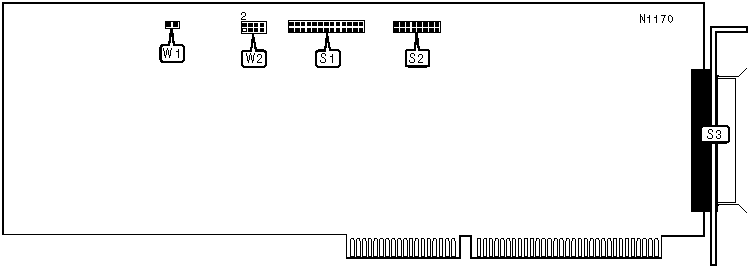

CONNECTIONS
Purpose	Location
Daisy-chain cable form another board connector	S1
Physical Media Extender board connector	S2
Proprietary Telco 50-pin connector	S3

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
W1	Closed
W2	pins 1 & 2 closed
