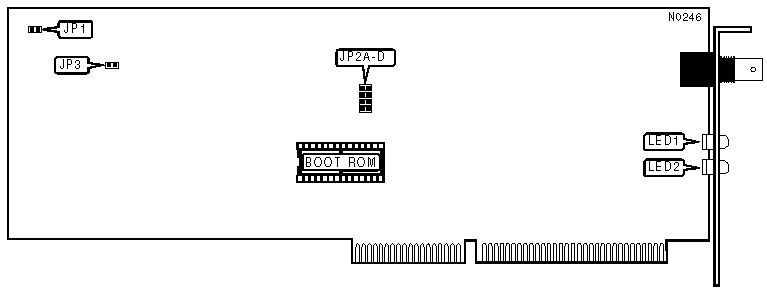

PURE DATA LTD.
PD1516PLUS
|
NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-62A/U 93ohm coaxial |
|
Boot ROM |
Available |
|
CONFIGURATION MEMORY CLEAR | ||
|
Clear |
JP1 | |
| » |
Normal operation |
Open |
|
Clear all addresses and settings from memory |
Closed | |
|
CARDS INSTALLED | ||||
|
Card number |
JP2A |
JP2B |
JP2C |
JP2D |
|
1 |
Closed |
Open |
Open |
Open |
|
2 |
Open |
Closed |
Open |
Open |
|
3 |
Open |
Open |
Closed |
Open |
|
4 |
Open |
Open |
Open |
Closed |
|
Note:If there is only one NIC installed in a system, set this option to the "1" position. If this NIC is the second NIC to be installed in a system, set this option to the "2" position and so on. | ||||
|
COMPATIBILITY MODE | ||
|
Condition |
JP3 | |
| » |
Compatibility mode disabled |
Open |
|
Compatibility mode enabled |
Closed | |
|
Note: Compatibility mode should be enabled when the NIC is installed in a system using a Suntac 286 chipset. | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
Blinking |
I/O bus activity |
|
LED1 |
Red |
Off |
No I/O bus activity |
|
LED2 |
Green |
On |
Data is being transmitted or received |
|
LED2 |
Green |
Blinking |
No network activity detected, or bad connection |
