PURE DATA, LTD.

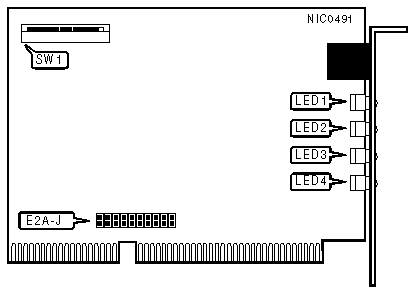

PDI7023-16T
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|
INTERRUPT REQUEST | |||||||||||
|
IRQ |
E2A |
E2B |
E2C |
E2D |
E2E |
E2F |
E2G |
E2H |
E2I |
E2J | |
|
2/9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
| » |
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
I/O BASE ADDRESS | ||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 | |
|
260h |
On |
On |
On | |
|
290h |
Off |
On |
On | |
|
2E0h |
On |
Off |
On | |
|
2F0h |
Off |
Off |
On | |
| » |
300h |
On |
On |
Off |
|
350h |
Off |
On |
Off | |
|
380h |
On |
Off |
Off | |
|
3E0h |
Off |
Off |
Off | |
|
EXTENDED TRANSMIT TIMEOUT | ||
|
Setting |
SW1/5 | |
| » |
Enabled |
On |
|
Disabled |
Off | |
|
Note:With this option enabled, if the card is transmitting for an extented amount of time the transmission will be interrupted and continued after a preset time. This keeps the card from
dominating the network.
| ||
|
LINK INTEGRITY TEST | ||
|
Setting |
SW1/7 | |
| » |
Enabled |
On |
|
Disabled |
Off | |
|
FACTORY CONFIGURED SETTINGS | |
|
Switch |
Setting |
|
SW1/4 |
Off |
|
SW1/6 |
On |
|
SW1/8 |
Off |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Card is being accessed by host computer |
|
LED1 |
Red |
Off |
Card is not being accessed by host computer |
|
LED2 |
Green |
On |
Data is being transmitted or received |
|
LED2 |
Green |
Off |
Data is not being transmitted or received |
|
LED3 |
Red |
On |
Receive wires are reversed and corrected for |
|
LED3 |
Red |
Off |
Normal operation |
|
LED4 |
Green |
On |
Network connection is good |
|
LED4 |
Green |
Off |
Network connection is broken |
|
Note:If LED3 is lit the receive wires are reversed. The card will automatically correct for this but the wires should be repaired as soon as possible.
| |||
