NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

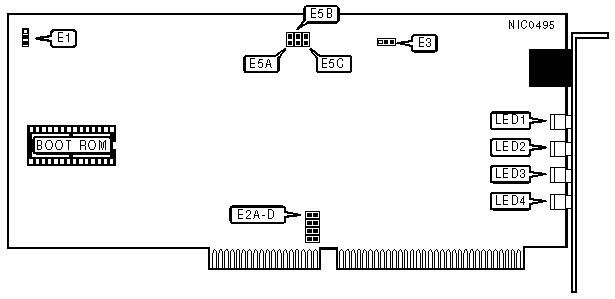

SOFTWARE CONFIGURATION RESET
Setting		E1
»	Normal operation	Pins 2 & 3 closed
	Reset	Pins 1 & 2 closed
Note:Many of the options are configured using the setup utility provided with the card. To reset those configurations to the factory defaults, move E1 to the Reset position (pins 1 & 2 closed) and apply power for a few seconds. Always make sure that you turn off the power to the computer before you change any jumpers.

CARD I/D NUMBER
Number		E2A	E2B	E2C	E2D
»	1	Open	Open	Open	Closed
	2	Open	Open	Closed	Open
	3	Open	Closed	Open	Open
	4	Closed	Open	Open	Open
Note:Up to four cards can be installed into a system at the same time. If more than one card is installed each one must have a seperate card I/D number.

LINK INTEGRITY TEST
Setting		E3
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
E5A	Open
E5B	Open
E5C	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Card is being accessed by host computer
LED1	Red	Off	Card is not being accessed by host computer
LED2	Green	On	Data is being transmitted or received
LED2	Green	Off	Data is not being transmitted or received
LED3	Red	On	Receive wires are reversed and corrected for
LED3	Red	Off	Normal operation
LED4	Green	On	Network connection is good
LED4	Green	Off	Network connection is broken
Note:If LED3 is lit the receive wires are reversed. The card will automatically correct for this but the wires should be repaired as soon as possible.
