RACORE COMPUTER PRODUCTS, INC.
M8122
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Unshielded twisted pair (IBM Type 3) Shielded twisted pair via DB-9 port (IBM Type 1) |
|
Boot ROM |
Not available |
|

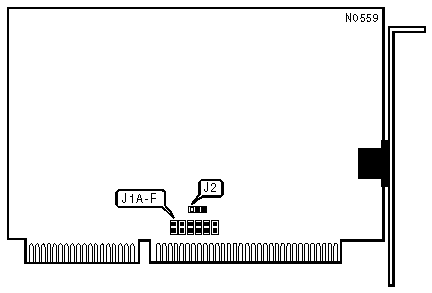

PRIMARY/ALTERNATE CARD | ||
|
Setting |
J1 | |
| » |
Primary |
Pins 1 & 2 closed |
|
Alternate |
Pins 2 & 3 closed | |
|
Note:If two of these cards are to be used in a single system, one of the cards must be set to primary and the other card must be set to alternate. | ||
|
INTERRUPT REQUEST | |||||||
|
IRQ |
J2A |
J2B |
J2C |
J2D |
J2E |
J2F | |
|
2/9 |
Closed |
Open |
Open |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed | |
