NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	Unshielded twisted pair RG58A/U 50ohm coaxial AUI tranceiver via DB-15
Boot ROM	Available

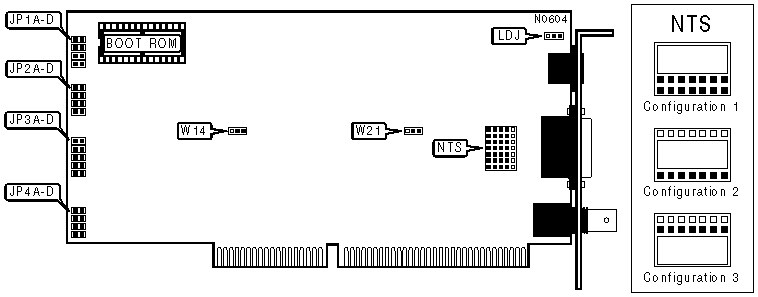

CABLE TYPE
Type		NTS
	Unshielded twisted pair	Configuration 2
»	RG58A/U 50ohm coaxial	Configuration 1
	AUI transceiver via DB-15 port	Configuration 3

BASE I/O ADDRESS
Address	JP1A	JP1B	JP1C	JP1D
300h	Closed	Open	Open	Open
320h	Open	Closed	Open	Open
340h	Open	Open	Closed	Open
360h	Open	Open	Open	Closed

INTERRUPT SETTINGS
IRQ	JP2A	JP2B	JP2C	JP2D
2/9	Open	Closed	Open	Open
5	Closed	Open	Open	Open
12	Open	Open	Closed	Open
15	Open	Open	Open	Closed

BOOT ROM ADDRESS
Address		JP3A	JP3B	JP3C	JP3D	JP3E
	No Boot Rom	Closed	Open	Open	Open	Open
	C0000h	Open	Closed	Open	Open	Open
	C4000h	Open	Open	Closed	Open	Open
»	C8000h	Open	Open	Open	Closed	Open
	CC000h	Open	Open	Open	Open	Closed

BASE MEMORY ADDRESS
Address	JP4A	JP4B	JP4C	JP4D
D0000	Closed	Open	Open	Open
D4000	Open	Closed	Open	Open
D8000	Open	Open	Closed	Open
DC000	Open	Open	Open	Closed

LINK INTEGRITY
Function		LDJ
»	Link intergity enabled	Pins 1 & 2 closed
	Link integrity disabled	Pins 2 & 3 closed
Note: If card is used in a pre-10BaseT cabling network, disable the link integrity function.

MAIN BOARD COMPATIBILITY
Setting	W14	W21
NIC installed in a Compaq EISA system	Pins 1 & 2 closed	Pins 2 & 3 closed
NIC installed in a true IBM XT system	Pins 2 & 3 closed	Pins 1 & 2 closed
NIC installed in any other 100% IBM compatible system	Pins 1 & 2 closed	Pins 1 & 2 closed
