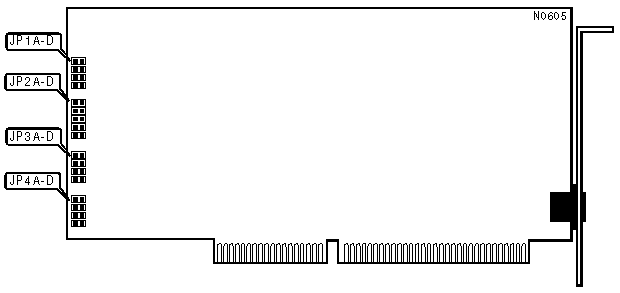

RACAL INTERLAN, INC.
NI6210-10BT (VERSION 1)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|
BASE I/O ADDRESS | ||||
|
Address |
JP1A |
JP1B |
JP1C |
JP1D |
|
300h |
Closed |
Open |
Open |
Open |
|
320h |
Open |
Closed |
Open |
Open |
|
340h |
Open |
Open |
Closed |
Open |
|
360h |
Open |
Open |
Open |
Closed |
|
BOOT ROM ADDRESS | |||||
|
Address |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E |
|
D0000h |
Closed |
Open |
Open |
Open |
Open |
|
D4000h |
Open |
Closed |
Open |
Open |
Open |
|
D8000h |
Open |
Open |
Closed |
Open |
Open |
|
DC000h |
Open |
Open |
Open |
Closed |
Open |
|
No Boot ROM |
Open |
Open |
Open |
Open |
Closed |
|
DMA CHANNEL | ||||
|
Channel |
JP3A |
JP3B |
JP3C |
JP3D |
|
DMA0 |
Closed |
Open |
Open |
Open |
|
DMA3 |
Open |
Closed |
Open |
Open |
|
DMA5 |
Open |
Open |
Closed |
Open |
|
DMA6 |
Open |
Open |
Open |
Closed |
|
INTERRUPT SETTINGS | ||||
|
IRQ |
JP4A |
JP4B |
JP4C |
JP4D |
|
2/9 |
Closed |
Open |
Open |
Open |
|
5 |
Open |
Open |
Open |
Closed |
|
12 |
Open |
Closed |
Open |
Open |
|
15 |
Open |
Open |
Closed |
Open |
