16-BIT ETHERNET CONTROLLER

RACAL-INTERLAN, INC.

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	16-bit ISA
Topology:	Linear Bus
Wiring Type	AUI transceiver via DB-15 port RG58A/U 50ohm coaxial
Boot ROM	Available

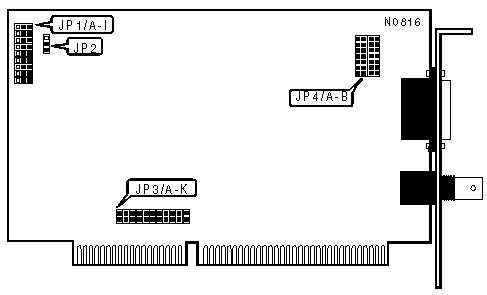

MEMORY ADDRESS - JP1
Address	Jumper A	Jumper B	Jumper C	Jumper D
» D0000h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
C0000h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
C2000h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
C4000h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
C6000h	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
C8000h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
CA000h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
CC000h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
CE000h	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
D2000h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
D4000h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
D6000h	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
D8000h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
DA000h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
DC000h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
DE000h	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

I/O ADDRESS - JP1

Address

Jumper E

Jumper F

Jumper G

Jumper H

Jumper I

» 360h

2 & 3 closed

1 & 2 closed

2 & 3 closed

1 & 2 closed

200h

1 & 2 closed

210h

1 & 2 closed

2 & 3 closed

220h

1 & 2 closed

2 & 3 closed

1 & 2 closed

230h

1 & 2 closed

2 & 3 closed

240h

1 & 2 closed

2 & 3 closed

1 & 2 closed

250h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2 & 3 closed

260h

1 & 2 closed

2 & 3 closed

1 & 2 closed

270h

1 & 2 closed

2 & 3 closed

280h

1 & 2 closed

2 & 3 closed

1 & 2 closed

290h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2 & 3 closed

2A0h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2 & 3 closed

1 & 2 closed

2B0h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2 & 3 closed

2C0h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2D0h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2 & 3 closed

2E0h

1 & 2 closed

2 & 3 closed

1 & 2 closed

2F0h

1 & 2 closed

2 & 3 closed

300h

2 & 3 closed

1 & 2 closed

310h

2 & 3 closed

1 & 2 closed

2 & 3 closed

320h

2 & 3 closed

1 & 2 closed

2 & 3 closed

1 & 2 closed

330h

2 & 3 closed

1 & 2 closed

2 & 3 closed

340h

2 & 3 closed

1 & 2 closed

2 & 3 closed

1 & 2 closed

350h

2 & 3 closed

1 & 2 closed

2 & 3 closed

1 & 2 closed

2 & 3 closed

370h

2 & 3 closed

1 & 2 closed

2 & 3 closed

380h

2 & 3 closed

1 & 2 closed

390h

2 & 3 closed

1 & 2 closed

2 & 3 closed

3A0h

2 & 3 closed

1 & 2 closed

2 & 3 closed

1 & 2 closed

3B0h

2 & 3 closed

1 & 2 closed

2 & 3 closed

3C0h

2 & 3 closed

1 & 2 closed

3D0h

2 & 3 closed

1 & 2 closed

2 & 3 closed

3E0h

2 & 3 closed

1 & 2 closed

3F0h

2 & 3 closed

BOOT ROM
Setting	JP2
» Disabled	Pins 1 & 2 closed
Enabled	Pins 2 & 3 closed

INTERRUPT SELECT - JP3
IRQ	Jumper F	Jumper G	Jumper H	Jumper I	Jumper J	Jumper K
» IRQ7	Open	Closed	Open	Open	Open	Open
IRQ3	Open	Open	Open	Open	Open	Closed
IRQ4	Open	Open	Open	Open	Closed	Open
IRQ5	Open	Open	Open	Closed	Open	Open
IRQ6	Open	Open	Closed	Open	Open	Open
IRQ9	Closed	Open	Open	Open	Open	Open

INTERRUPT SELECT - JP3
IRQ	Jumper A	Jumper B	Jumper C	Jumper D	Jumper E
IRQ10	Open	Open	Open	Open	Closed
IRQ11	Open	Open	Open	Closed	Open
IRQ12	Open	Open	Closed	Open	Open
IRQ14	Open	Closed	Open	Open	Open
IRQ15	Closed	Open	Open	Open	Open

CABLE TYPE
Type	JP4
» RG-58A/U 50ohm coaxial	See Configuration "A"
AUI transceiver via DB-15 port	See Configuration "B"
