NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Not available

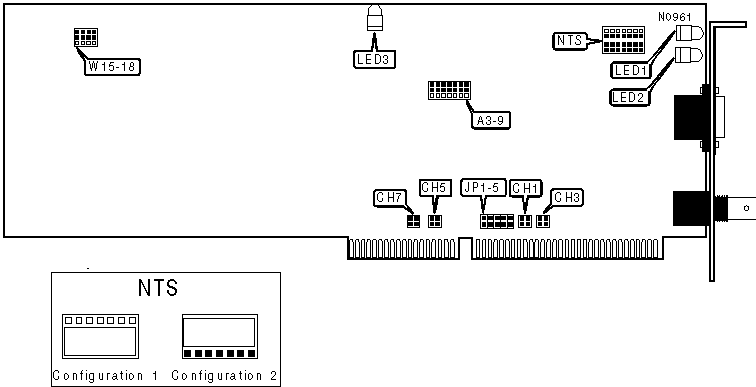

I/O BASE ADDRESS JUMPER SETTINGS
Address	A3	A4	A5	A6	A7	A8	A9
200h	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
208h	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
210h	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
218h	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3
220h	1 & 2	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2	2 & 3
3D8h	2 & 3	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3
3E0h	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
3E8h	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
3F0h	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
3F8h	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: A total of 127 memory base address settings are available. The switches are a binary representation of the hexadecimal addresses. Jumper A3 is the Least Significant Bit and Jumper A9 is the Most Significant Bit. The jumpers have the following decimal values: Jumper A3=8, A4=16, A5=32, A6=64, A7=16, A8=256, A9=512. Add the values of the jumpers with pins 2 & 3 closed to obtain the correct memory address. (On=pins 2 & 3 closed, Off=pins 1 & 2 closed)

CABLE TYPE SELECTION
Cable Type	NTS
AUI Transceiver via DB-15 port	Configuration 1
RG-58A/U 50ohm coaxial	Configuration 2

INTERRUPT SELECTION
IRQ	JP1	JP2	JP3	JP4	JP5
3	Closed	Open	Open	Open	Open
5	Open	Closed	Open	Open	Open
9	Open	Open	Closed	Open	Open
11	Open	Open	Open	Closed	Open
15	Open	Open	Open	Open	Closed

DMA CHANNEL SELECTION
Channel	CH7	CH5	CH1	CH3
DMA7	Closed	Open	Open	Open
DMA5	Open	Closed	Open	Open
DMA1	Open	Open	Closed	Open
DMA3	Open	Open	Open	Closed

DIAGNOSTIC LED(S)
LED1 (Red)	LED2 (Green)	Condition
Off	On	Network connection is good
On	On	Kernal and hardware failure
On	Off	Hardware failure
Off	Off	network connection is broken
Note: LED3 is lit only when UTP network connection is good

FACTORY CONFIGURED SETTINGS
Jumper	Setting
W15-18	Pins 2 & 3 closed
