PROTEON, INC.
PRONET P1800/P1800-NS
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair |
|
Boot ROM |
Not available |
|

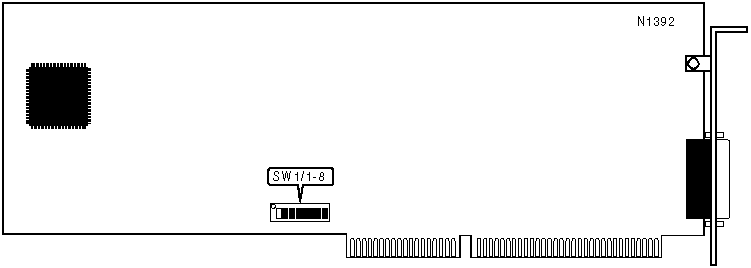

NODE ADDRESS SELECTION | ||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
1 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
2 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
3 |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
5 |
On |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
251 |
On |
On |
Off |
On |
On |
On |
On |
On |
|
252 |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
253 |
On |
Off |
On |
On |
On |
On |
On |
On |
|
254 |
Off |
On |
On |
On |
On |
On |
On |
On |
|
255 |
On |
On |
On |
On |
On |
On |
On |
On |
|
Note: A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch SW1/1 is the Least Significant Bit and switch SW1/8 is the Most Significant Bit. Switches SW1/1-8 have the following decimal values: =1, =2, =4, =8, =16, =32, =64, =128. Turn on the switches and add the values of the on switches to obtain the correct node address. (off=0) | ||||||||
