PROTEON, INC.

Card Type	Ethernet
Data Bus	32-bit PCI
Maximum network Rate	10Mbps
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

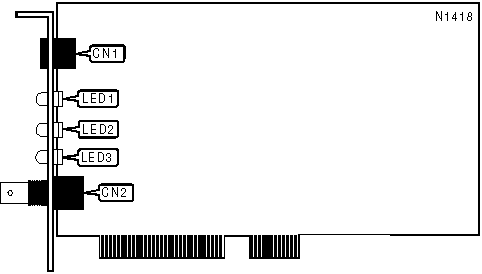

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair	CN1	RG-58A/U 50ohm coaxial	CN2

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	10Base-T network connection is good
LED1	Off	10Base-T network connection is broken
LED2	On	10Base-T cable selected
LED2	Blinking slowly	Auto mode selected
LED2	Off	BNC cable type selected
LED3	Blinking	Data is being transmitted/received
LED3	Off	Data is not being transmitted/received
