Card Type	Token Ring
Data Bus	EISA
Maximum Network Rate	4/16Mbps
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Boot ROM	Available (location unidentified)

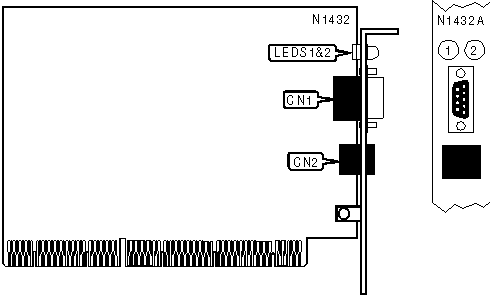

CONNECTIONS
Function	Label
Shielded twisted pair port	CN1
Unshielded twisted pair port	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Network connection is good
LED1	Yellow	Off	Network connection is broken
LED2	Green	On	Data is being transmitted/received
LED2	Green	Off	Data is not being transmitted/received
Note: The exact location of LED1 & LED2 is unidentified.
