PROXIM, INC.
RANGELAN802 (8520, 8521)
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Not available |
|
Radio Data Rate |
2Mbps |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|

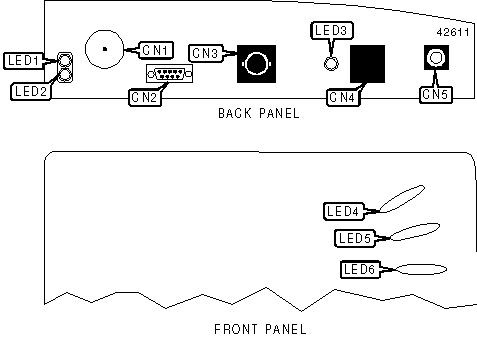

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Antenna connector |
CN1 |
RJ-45 UTP connector |
CN4 |
|
DB-9 serial connector |
CN2 |
DC power connector |
CN5 |
|
RG-58A/U connector |
CN3 | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Operating in infrastructure mode |
|
LED1 |
Green |
Off |
Not operating in infrastructure mode |
|
LED2 |
Unidentified |
Off |
Non-functioning LED - reserved for future use |
|
LED3 |
Green |
On |
10BASE-T network connection is good |
|
LED3 |
Green |
Off |
No 10BASE-T network connection |
|
LED4 |
Green |
On |
Operating in normal mode |
|
LED4 |
Yellow |
On |
Power to hardware is on |
|
LED4 |
Red |
On |
Problem with hardware |
|
LED5 |
Yellow |
On |
Data is being received wirelessly |
|
LED5 |
Yellow |
Off |
Data is not being received wirelessly |
|
LED6 |
Green |
On |
Data is being received from Ethernet |
|
LED6 |
Green |
Off |
Data is not being received from Ethernet |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Model 8520 operates at 100 mW. Model 8521 operates at 400 mW. |
