PATTON ELECTRONICS COMPANY
2090
|
Card Type |
Transceiver |
|
NIC Type |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
1.544Mbps |
|
Topology |
Star, Point-to-point |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
External |
|

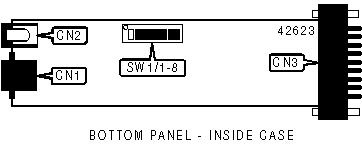

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-48C UTP connector |
CN1 |
DC power connector |
CN2 |
|
DTE connector |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
ESF line framing/B8ZS line coding |
SW1/4 |
Off |
|
D4 line framing/AMI line coding |
SW1/4 |
On |
|
DS0 set to 56Kbps |
SW1/5 |
Off |
|
DSO set to 64Kbps |
SW1/5 |
On |
|
Timing set by network clock |
SW1/6 |
Off |
|
Timing set by internal clock |
SW1/6 |
On |
|
DTE SPEED SELECTION | |||
|
Speed |
SW1/1 |
SW1/2 |
SW1/3 |
|
Clear channel |
Off |
Off |
Off |
|
112 - 128Kbps |
On |
Off |
Off |
|
224 - 256Kbps |
Off |
On |
Off |
|
336 - 384Kbps |
On |
On |
Off |
|
448 - 512Kbps |
Off |
Off |
On |
|
672 - 768Kbps |
On |
Off |
On |
|
896 - 1024Kbps |
Off |
On |
On |
|
1344 - 1536Kbps |
On |
On |
On |
|
LINE BUILD OUT SELECTION | ||
|
Setting |
SW1/7 |
SW1/8 |
|
0dB |
Off |
Off |
|
-7.5dB |
On |
Off |
|
-15.0dB |
Off |
On |
|
-22.5dB |
On |
On |
|

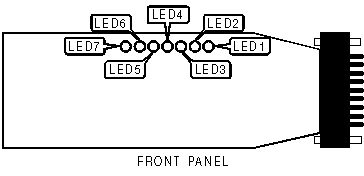

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being transmitted |
|
LED1 |
Green |
Off |
Data is not being transmitted |
|
LED2 |
Green |
On |
Data is being received |
|
LED2 |
Green |
Off |
Data is not being received |
|
LED3 |
Red |
On |
Network connection is broken |
|
LED3 |
Red |
Off |
Network connection is good |
|
LED4 |
Red |
On |
Alarm condition - loss of sync or loss of frame |
|
LED4 |
Red |
Off |
No alarm condition |
|
LED5 |
Red |
On |
Error has occurred |
|
LED5 |
Red |
Off |
No errors have occurred |
|
LED6 |
Yellow |
On |
Operating in test mode |
|
LED6 |
Yellow |
Off |
Not operating in test mode |
|
LED7 |
Green |
On |
Power is on |
|
LED7 |
Green |
Off |
Power is off |
