TIARA COMPUTER SYSTEMS, INC.
TOKEN RING LANCARD*16 AT
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair |
|
Boot ROM |
Available |
|

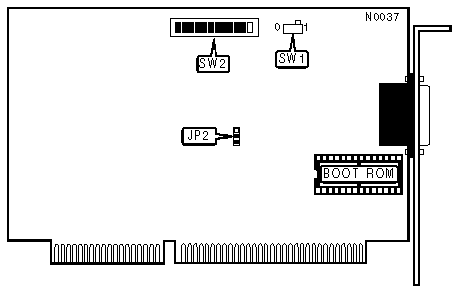

COMPATIBILITY MODE | ||
|
Setting |
JP2 | |
| » |
Normal |
Pins 2 & 3 Closed |
|
System uses a Chips & Technologies chipset |
Pins 1 & 2 Closed | |
|
BOOT ROM | ||
|
Setting |
SW1 | |
| » |
Disabled |
Position 0 (Off) |
|
Enabled |
Position 1 (On) | |
|
NETWORK SPEED | ||
|
Setting |
SW2/1 | |
| » |
4Mbps |
On |
|
16Mbps |
Off | |
|
INTERRUPT REQUEST | ||
|
IRQ |
SW2/7 |
SW2/8 |
|
2/9 |
On |
On |
|
3 |
On |
Off |
|
10 |
Off |
On |
|
11 |
Off |
Off |
|
I/O BASE ADDRESS | |||
|
Address |
SW2/9 |
SW2/10 | |
| » |
A20-A23h, A30-A3Fh |
On |
On |
|
A24-A27h, A40-A4Fh |
On |
Off | |
|
A50-A53h, A60-A6Fh |
Off |
On | |
|
A54-A57h, A70-A7Fh |
Off |
Off | |
|
BOOT ROM ADDRESS | ||||||
|
Address |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 | |
| » |
CC000h |
On |
On |
Off |
Off |
On |
|
C0000h |
On |
On |
On |
On |
On | |
|
C2000h |
On |
On |
On |
On |
Off | |
|
C4000h |
On |
On |
On |
Off |
On | |
|
C6000h |
On |
On |
On |
Off |
Off | |
|
C8000h |
On |
On |
Off |
On |
On | |
|
CA000h |
On |
On |
Off |
On |
Off | |
|
CE000h |
On |
On |
Off |
Off |
Off | |
|
D0000h |
On |
Off |
On |
On |
On | |
|
D2000h |
On |
Off |
On |
On |
Off | |
|
D4000h |
On |
Off |
On |
Off |
On | |
|
D6000h |
On |
Off |
On |
Off |
Off | |
|
D8000h |
On |
Off |
Off |
On |
On | |
|
DA000h |
On |
Off |
Off |
On |
Off | |
|
DC000h |
On |
Off |
Off |
Off |
On | |
|
DE000h |
On |
Off |
Off |
Off |
Off | |
|
E0000h |
Off |
On |
On |
On |
On | |
|
E2000h |
Off |
On |
On |
On |
Off | |
|
E4000h |
Off |
On |
On |
Off |
On | |
|
E6000h |
Off |
On |
On |
Off |
Off | |
|
E8000h |
Off |
On |
Off |
On |
On | |
|
EA000h |
Off |
On |
Off |
On |
Off | |
|
EC000h |
Off |
On |
Off |
Off |
On | |
|
EE000h |
Off |
On |
Off |
Off |
Off | |
|
F0000h |
Off |
Off |
On |
On |
On | |
|
F2000h |
Off |
Off |
On |
On |
Off | |
|
F4000h |
Off |
Off |
On |
Off |
On | |
|
F6000h |
Off |
Off |
On |
Off |
Off | |
|
F8000h |
Off |
Off |
Off |
On |
On | |
|
FA000h |
Off |
Off |
Off |
On |
Off | |
|
FC000h |
Off |
Off |
Off |
Off |
On | |
|
FE000h |
Off |
Off |
Off |
Off |
Off | |
|
DMA CHANNEL | ||||
|
Channel |
SW2/11 |
SW2/12 | ||
| » |
5 |
On |
On | |
|
6 |
On |
Off | ||
|
7 |
Off |
On | ||
|
Programmed I/O 1 |
Off |
Off | ||
|
Note 1 :If the NIC is installed into an XT-type PC or the 8-bit expansion slot of an AT-type PC, the programmed I/O transfer method is automatically used regardless of the switch settings. This setting does not apply when running under OS/2. | ||||
