TIARA COMPUTER SYSTEMS, INC.

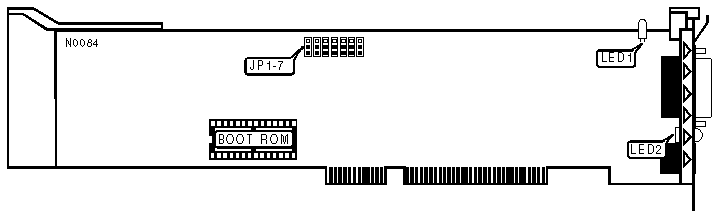

LanCard/E * MC TP
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
MCA |
|
Topology |
Linear bus Star |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | |
|
Type |
JP1 - JP7 |
|
Shielded/Unshielded twisted pair |
Pins 1 & 2 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 closed |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
1 |
On |
Network connection is good |
|
2 |
On |
Network connection s broken |
