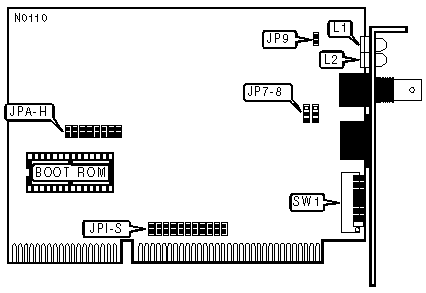

TIARA COMPUTER SYSTEMS, INC.
ARCNET LanCard AT
|
NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star Linear Bus |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
NODE ADDRESS | ||||||||
|
Node |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
0 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On |
|
2 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
3 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
4 |
Off |
Off |
Off |
Off |
Off |
On |
Off |
Off |
|
251 |
On |
On |
On |
On |
On |
Off |
On |
On |
|
252 |
On |
On |
On |
On |
On |
On |
Off |
Off |
|
253 |
On |
On |
On |
On |
On |
On |
Off |
On |
|
254 |
On |
On |
On |
On |
On |
On |
On |
Off |
|
255 |
On |
On |
On |
On |
On |
On |
On |
On |
|
Note:Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 8=1, 7=2, 6=4, 5=8, 4=16, 3=32, 2=64, 1=128. Turn on the switches and add the values of the on switches to obtain the correct node address. (On=1, Off=0) | ||||||||
|
CABLE TYPE | ||
|
Type |
JP7 & JP8 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
Shielded/Unshielded twisted pair |
Pins 2 & 3 closed | |
|
TOPOLOGY CONFIGURATION | ||
|
Topology |
JP9 | |
| » |
Linear Bus |
Open |
|
Star |
Closed | |
|
RIM BUFFER ADDRESS/BOOT ROM ADDRESS CONFIGURATION | |||||||
|
Buffer |
Boot ROM |
JPA |
JPB |
JPC |
JPD |
JPE | |
|
CCOOh |
CE00h |
Closed |
Closed |
Closed |
Open |
Closed | |
| » |
D000h |
D200h |
Closed |
Closed |
Open |
Open |
Closed |
|
D400h |
D600h |
Closed |
Closed |
Closed |
Closed |
Open | |
|
D800h |
DA00h |
Closed |
Closed |
Open |
Closed |
Open | |
|
DC00h |
DE00h |
Closed |
Closed |
Closed |
Open |
Open | |
|
E000h |
E200h |
Closed |
Closed |
Open |
Open |
Open | |
|
I/O BASE ADDRESS | ||||
|
Address |
JPF |
JPG |
JPH | |
| » |
2E0h |
Closed |
Open |
Closed |
|
260h |
Closed |
Closed |
Closed | |
|
290h |
Open |
Closed |
Closed | |
|
2F0h |
Open |
Open |
Closed | |
|
300h |
Closed |
Closed |
Open | |
|
350h |
Open |
Closed |
Open | |
|
380h |
Closed |
Open |
Open | |
|
3E0h |
Open |
Open |
Open | |
|
INTERRUPT REQUEST | ||||||||||
|
IRQ |
JPI |
JPJ |
JPK |
JPL |
JPM |
JPN |
JPO |
JPP |
JPQ | |
| » |
2/9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
3 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
10 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
I/O OPTION CONFIGURATION | |||
|
I/O CHRDY |
Zero Wait State |
JPR |
JPS |
|
Disabled |
Disabled |
Open |
Open |
|
Disabled |
Enabled |
Closed |
Open |
|
Enabled |
Disabled |
Open |
Closed |
|
Note:Zero wait state operation and I/O CHRDY signal cannot be enabled at the same time. | |||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
L1 |
Red |
On |
Data is being received |
|
L1 |
Red |
Off |
Data is not being received |
|
L1 |
Red |
Blinking |
Card is reconfiguring |
|
L2 |
Green |
On |
Data is being transmitted |
|
L2 |
Green |
Off |
Data is not being transmitted |
|
L2 |
Green |
Blinking |
Card is reconfiguring |
